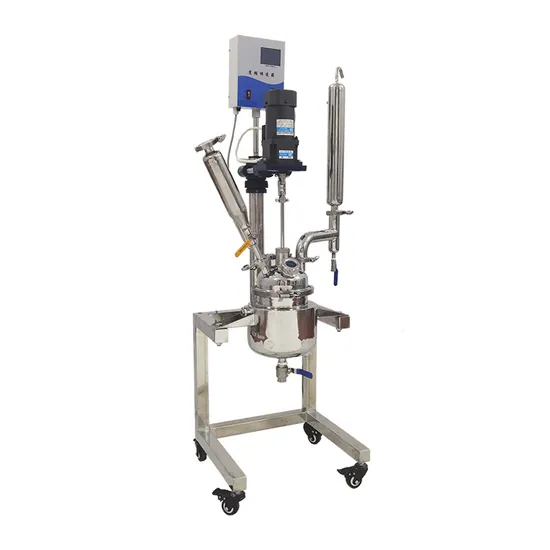

Laboao 2L Stainless Steel Reactor

US$1,428.00
1-4 Pieces
US$1,400.00
5+ Pieces

Basic Info.

Model NO.
LSR-2L
Type
Reaction Kettle
Material
SS304
Capacity
<50L
Structure
Multiple Parallel
Pressure
4kg
Agitator Model
Anchor Agitator
Tower Reactor Type
Plate Tower Reactor
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Frame Material
304 Stainless Steel
Vacuum
-0.098MPa
Port Number
6ports
Stirring Speed
0-460rpm
Display Data
Speed and Temperature
Sealing Material
PTFE Material
Temp. Range
-120c to 250c
Vacuum Gauge
Oil Vacuum Gauge
Voltage
220V or 110V
Customized
Yes
Transport Package
Plywood Case
Specification
1-500l
Trademark
LABOAO
Origin
China
HS Code
8419899090
Production Capacity
1000sets/Month

Product Description

Product Description Laboao 30L Stainelss steel Reactor

LABOAO High Customization Stainless Steel Reactor
The Double layer stainless steel reactor is designed with double-layer stainless steel. The reaction solvent is placed in the inner layer for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigeration liquid, hot water or hot oil) for cyclic heating or cooling reaction. Under set constant temperature conditions, in a closed stainless steel reactor, the stirring reaction can be carried out under normal pressure or negative pressure according to the use requirements, and the reaction solution can be refluxed and distilled. It is an ideal choice for modern fine chemical plants, biopharmaceuticals and Ideal pilot and production equipment for the synthesis of new materials.
Model LSR-2L
Kettle volume 2L
Mezzanine volume 0.6L
Voltage/frequency 220V/50 Hz
Reaction temperature -120~260ºC
Pressure -0.1~0.3Mpa
Stirring speed 0-460rpm
Power 120W
Sealed form Stainless steel graphite combination mechanical seal
Number of cauldron lid openings Eight ports (optional)
Material SUS316L/SUS304
Overall dimensions 450*450*1410mm
Optional(Additional fee) Explosion-proof whole machine/
electric heating/Total 316L/collection tank/
mobile frame /spraying PTFE
