Henan Mine High Technology Metallurgy Hoist 1t 2t 3t 5t 10t 16t 20t Electric Double Girder Overhead Crane Electric Over Head Cranes Crane Girder Crane

Product Description

Product Description
Henan Mine Good Quality Factry Price 10t Metallurgical Electric Hoist
Product Description :
The design and manufacture of the European low headroom electric hoist conforms to FEM standards and DIN standards. It combines three-dimensional object modeling and finite element analysis technology to further optimize the gear drive, box structure and the dimensions of each component, so that each component reaches the optimal value, thus changing its size and saving installation space.
European wire rope electric hoist adopts German technology, and all key components are imported from the original manufacturer, such as energy-saving motors, safety brakes, load protection clutches, and high-strength wear-resistant chains.

Product Features
Features:
Can be used in class 1000 clean environments.
Antistatic and anticorrosive surface treatment with high permeability, adhesion, chemical stability and non-pollution.
Clean space unit volume of air, the maximum concentration of particles greater than or equal to the size of the particles under consideration to classify the grade standard. Air cleanliness: The degree of dust content in clean air (i.e., dust concentration). A high concentration of dust is associated with low cleanliness, while a low concentration of dust is associated with high cleanliness.
Product Parameters
Product Structure

S.W.L (T)	Work duty	Lifting height (m)	Lifting speed (m/min)	Rope reeving	Travelling speed (m/min)	B (mm)	K1 (mm)	K2 (mm)	L (mm)	H (mm)	Wheel load (KN)	Weight (kg)
1.6	M6	6	1.6/10	2/1	2~20	200~300	500	450	930	400	6.1	300
		9					500	450	1100	400	6.2	335
		12					500	450	1270	400	6.3	370
2.5	M6	6	0.8/5.0	4/1	2~20	200~350	500	450	1180	430	9.1	315
		9					500	450	1400	430	9.2	350
		12					500	450	1620	430	9.3	385
3.2	M5	6	0.8/5.0	4/1	2~20	250~350	500	450	1180	450	11.5	335
		9					500	450	1400	450	11.6	370
		12					500	450	1620	450	11.7	405
6.3	M5	6	0.8/5.0	4/1	2~20	300~450	490	450	1170	500	22	400
		9					490	450	1400	500	22.1	450
		12					490	450	1630	500	22.2	500
8	M6	6	0.8/5.0	4/1	2~20	300~450	550	540	1120	650	28	580
		9					550	540	1290	650	28.1	610
		12					550	540	1460	650	28.2	640
10	M5	6	0.8/5.0	4/1	2~20	300~450	550	540	1120	650	34.7	580
		9					550	540	1290	650	34.8	610
		12					550	540	1460	650	34.9	640
10	M6	6	0.66/4.0	4/1	2~20	300~450	560	550	1140	700	34.7	650
		9					560	550	1320	700	34.8	690
		12					560	550	1500	700	34.9	730
12.5	M5	6	0.66/4.0	4/1	2~20	300~500	560	550	1140	700	43.3	660
		9					560	550	1320	700	43.4	700
		12					560	550	1500	700	43.5	740

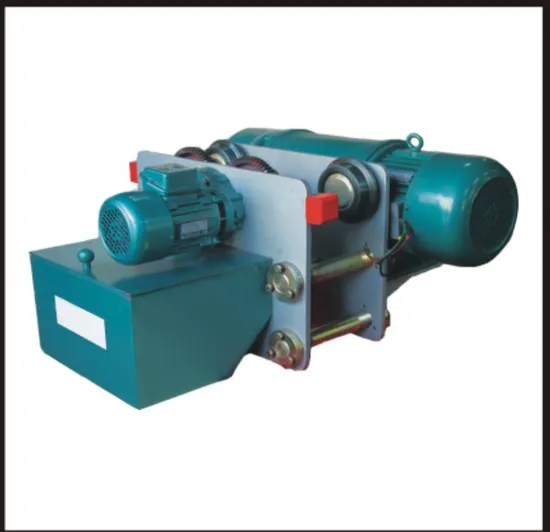

Real product picture
FAQ
1. What industries is this product suitable for?
Aerospace, water conservancy and power, metallurgy, transport and logistics, construction machinery and other industries.
2. Can this type work in hazardous environments?
Yes, of course! We can customise it for you, acid or explosion proof is no problem.
3. Can you provide the serious lifting tools?Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!4. How can we install the crane?Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.5. Safety deviceOverload limiter, Limit Switch (lifting and traveling), Interlock protection device.
Henan Province Mine Crane Co.,Ltd.(hereinafter referred to as "Henan mine") was established in 2002, covering an area of 1.62 million square meters, with more than 4700 employees. Since its establishment 20 years ago, the company has been advocating the development concept of reform and innovation, pursuing excellence, intelligent manufacturing, green and efficient, adhering to the continuous reform of technology, process, equipment, products and services, promoting the upgrading and transformation of the industry to automation, intelligence and informatization, and providing customers with all- round services. At present, the company's products have achieved remarkable results in more than 50 professional fields, such as aerospace, military science and technology, automobiles and ships, food and chemical industry, metal processing, steel smelting, machinery manufacturing and waste incineration treatment. The products cover more than 80 countries and regions and serve more than 7000 medium and high-end customers worldwide. Certifications
