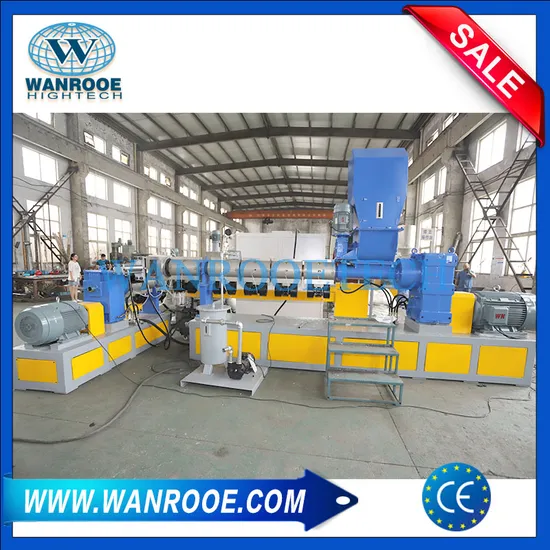

High Output Waste Plastic PP PE Film Granulating Line Double Stage Plastic Granulator Recycling Plant

Product Description

High Output Waste Plastic PP PE Film Granulating Line Double Stage Plastic Granulator Recycling Plant
Applications:
Double Stage PP PE Plastic Film Woven Bag Plastic Granulating Line is double stage plastic regenerative pelletizer, which is suitable for many kinds of plastic waste materials recycling and making pellets, such as PE, HDPE, LDPE, PP, BOPP plastic film, bag,fiber,rope scrap material and etc. The film can be pressed in the compressor and then be pelletized.
1.Applicable plastic materials: PE, HDPE, LDPE, PP, BOPP, PET, PA/Nylon, etc.
2.Material shapes: film, bag,fiber,rope scrap.
3.Material types: rolls, loose, bundled.
4.Material comes from offcut, industry defective materials, washed materials and printed materials.
Note: depending on different material properties, various downstream equipments are needed.
Description:
The double stage pelletizing line is especially good for the raw material which contain high moisture, high impurities.
The first stage extruder adopts exhaust type barrel screw, which can effectively de-gassing and eliminate the moisture and contamination;
And the second extruder usually adopts small L/D extruder, further plasticizing the material and filter contamination which can achieve stable extrusion.
Process flow:
Conveying feeding→ Metal detector →Film Agglomerator /Compactor →1# Degassing screw extruder →1# Hydraulic filer exchanger→2# screw extruder →2# Hydraulic filer exchanger→ Mould head →water ring cutting →Dewatering machine→ Air dryer Blowing system→ Storage hopper→ Finished product packing.
Detailed description of each item:
1. Conveyor: convey PP PE film or flakes into the compactor.
2. PE film Agglomerator /Compactor: crushing and compress film, and feed compressed film into extruder forced, to make the production capacity high and stable.
3.1# Extruding system: plasticizing material and exhausting gas.
4. 1# High-speed Net exchanging system: filter material impurity, to make production more stable.
5. 2# Extruding system: plasticizing material.
6. 2# High-speed Net exchanging system and Die-head: Second filter material impurity, to make production more stable.
7. Water ring pelletizing machine: cutting pellets in water.
8. Water tank: cooling pellets.
9. Dewater machine: make pellets dry.
10.Vibration sieve: remove bad pellet and keep good pellet.
11. Air Blower: convey good pellets into silo.
12. Storage silo: keep pellet.
Features :
1. Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3.High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5.Water ring granulator machine, attached with dryer.
Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
6. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Details:

Technical Parameters

Model	PNHS-85	PNHS-100	PNHS-130	PNHS-160	PNHS-180
Screw Dia (mm)	85	100	130	160	180
L/D	25-36	25-36	25-33	25-33	25-33
Capacity(kg/h)	120-180	200-250	400-500	450-700	500-1000

Our Service 1. One year guarantee for whole machine.
2.24 hours technical support.
3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.

---
