explain

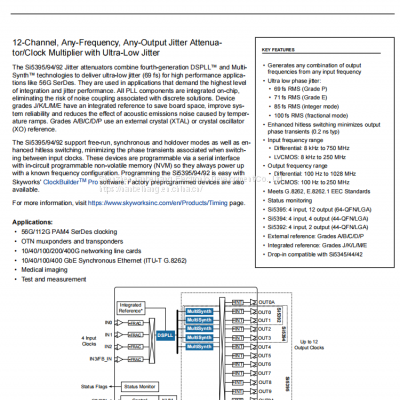

12 channel, any frequency, any output jitter attenuator/clock multiplier, Si5395/94/92 jitter attenuator combined with the fourth generation DSLL ™ And multi synthesis ™ Technology, providing ultra-low jitter (69 fs) for high-performance applications such as 56G SerDes. They are used in applications that require the highest level of integration and jitter performance. All PLL components are integrated on the chip, eliminating the risk of noise coupling related to discrete solutions. The J/K/L/M/E level equipment has a comprehensive reference function, which can save motherboard space, improve system reliability, and reduce the impact of acoustic emission noise caused by temperature ramps. A/B/C/D/P level, using external crystal (XTAL) or crystal oscillator (XO) reference values.
Si5395/94/92 supports free running, synchronous, and hold modes, as well as enhanced no hit switching, minimizing phase transients associated with switching between input clocks. These devices can be programmed through a serial interface of programmable nonvolatile memory (NVM) within the circuit, so they always power up at a known frequency configuration. Programming Si5395/94/92 is easy to work with Sky Clock Builder TMPro software. Pre programmed devices in the factory are also available.
KEY FEATURES
• Generates any combination of output
frequencies from any input frequency
• Ultra low phase jitter:
• 69 fs RMS (Grade P)
• 71 fs RMS (Grade E)
• 85 fs RMS (integer mode)
• 100 fs RMS (fractional mode)
• Enhanced hitless switching minimizes output
phase transients (0.2 ns typ)
• Input frequency range
• Differential: 8 kHz to 750 MHz
• LVCMOS: 8 kHz to 250 MHz
• Output frequency range
• Differential: 100 Hz to 1028 MHz
• LVCMOS: 100 Hz to 250 MHz
• Meets G.8262, E.8262.1 EEC Standards
• Status monitoring
• Si5395: 4 input, 12 output (64-QFN/LGA)
• Si5394: 4 input, 4 output (44-QFN/LGA)
• Si5392: 4 input, 2 output (44-QFN/LGA)
• External reference: Grades A/B/C/D/P
• Integrated reference: Grades J/K/L/M/E
• Drop-in compatible with Si5345/44/42
Applications:
• 56G/112G PAM4 SerDes clocking
• OTN muxponders and transponders
• 10/40/100/200/400G networking line cards
• 10/40/100/400 GbE Synchronous Ethernet (ITU-T G.8262)
• Medical imaging
• Test and measurement
>>
