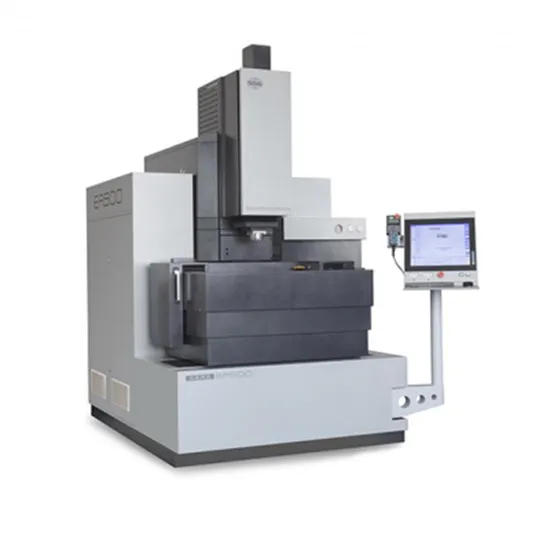

Ea500A CNC Precision Die Machenics Sinking EDM Machining Tool Die-Sinker Machine

Product Description

Product Features
Compact integrated machine structure;
Close-loop control;
Automatic lifting tank with opening on three-side;
Constant temperature control system of fluid
Our Advantages
1.Innovative all-in-one design, occupying less space, the X/axis independent structure brings extremely high mechanical precision and the best operational experience.
2.Complete set of Japanese THK guide rails and screws, the spindle uses an imported linear encoder and an imported AC servo motor to achieve full closed-loop numerical control.
3.Automatic elevating oil tank, with a three-sided opening design to meet your imagination of space and convenience.
4.Temperature control of the processing liquid to meet the needs of high-precision product processing.
5.Rich rocking functions to perform high-precision multi-axis linked three-dimensional processing, greatly expanding the processing methods.
6.Windows human-computer interface, excellent intelligent expert system to help you quickly get started. Product Parameters

Specifications		CNC power supply(ESQ1)
Machine dimension (L*W*H)	1800*23000*2600mm	Power supply
Machine weight	3500/4300kg	Power requirement	3PH 380V+10% 50+1HZ
Stroke(X*Y*Z)	500*300*320mm	Power supply capacity	11KVA
Water-tank dimension (L*W*H)	840*630*320mm	Machining Power Supply
Max. fluid level	265mm	Max. machining current	50A
Worktable Size(L*W)	650*450mm	NC unit	LC 1
Distance between electrode to table top	280-600mm	Operation System	Windows
Electrode bearing capacity	50kg	Display	19inch Touch Screen
Max. workpiece weight	800kg	Input	Monitor,Keyboard,USB
Air pressure	0.65MPa	Controll Srokes	6 axes
Air flow	100NL/min	Max. speed of AJC	Z stroke 8m/min
capacity	360L	Option Spare Parts
Filter method	Repaceable filter	Z motor	Linear Motor
Filters Quantity	2 pcs	Rotation axes	C/R Stroke

Checking Instrument Equipment
CNC Workshop
Japanese Customer Visit

Professional Afterservice in Sweeden
Professional Exhibition IMTS 2024 IN CHICAGO
DOMESTIC EXHIBITION IN NINGBO, ZHEJIANG
Company Profile

Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.
Company History
1966 :Suzhou No.3 Optical InstrumentFactory
1968 :Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model
1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based onSingle-board machine controller
1984 :DK7725D machine won the NationalSliver Medal
1989 : The company entered into partnershipwith COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venturecalled Suzhou Sanguang Electric MachineryCo.,Ltd
1994 : Sodick Co.Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-SanguangElectric Machinery Co.,Ltd
1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 SongshanRoadSND China, plant area 38060m?
2010 :Multi-cutting molybdenum wire cutmachine, HA series were released
2012 :The latest Brass wire cut machine, LAseries were released
2014 :Became a public company ,stockcode :430414
2016 : Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400 Certifications
HB design get honor of IF DESIGN AWARD AND RED DOT AWARD IN 2017
CE CERTIFICATE FOR EUROPE MARKET
ISO 9001 2095

---
