Dual Reacotr 20ton Crude Oil to Diesel Recycling Plant

Product Description

1.Technical parameters

NO.	Name	Parameter
1	The raw materials:	crude oil,sludge oil
2	Daily capacity:	20 ton/day
3	The size of reactor	2800*6000mm 16mm thickness
4	Reactor material	Q345R
5	Average oil productivity:	30%-80%,
6	Average carbon productivity:	20%-35%
7	effective temperature	180-500
8	pyrolysis time	6-8 hours
9	Discharge time	1.5 hour
10	Feeding time	3 hourS
11	Cooling time	3 hours
12.	Working pressure	Normal /slightly negative
13	Power	36 kw
14	Fuel	Coal. Wood, gas etc
15	Working area	1000 square meters
16	Total weight	35 000kgs
17	Reactor rotate speed	0.25-0.4/min
18	Noise	No less than 85DB
19.	Certificate	Ce,.iso,
20.	Carbon slag out	Automatic

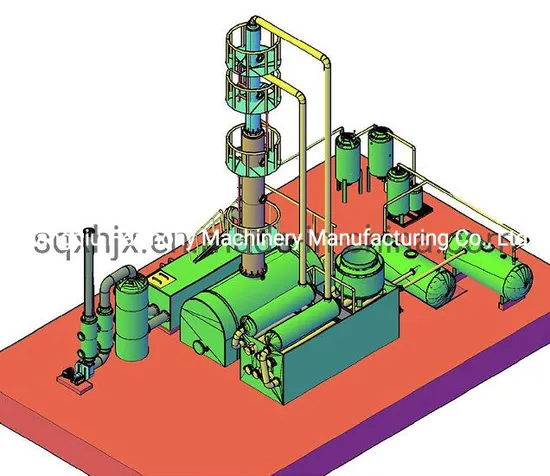

2. Major parts :
reactor with base and cover
oil -gas separator
heavy oil tanl
cooling system
light oil tank
water sealing
dedust system
waste gas recycle system
slag out device
control board
3. Work flow
loading plastic into reactor
heating reactor
after heating , solid plastic converted to oil gas
oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
after cooling ,light oil gas change to liquid oil and go into light oil tank
non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
4. oil rate

Oil yied/day	Waste tire/ rubber	Big tyres	45%--50%
		Car tyres	40%
		Bicycles and motorcycles tyres	30%--35%
	Waste plastic	Fishing net	45%--50%
		Safety net , farm-oriented film
		Conwenient bags , weave bags	40%
		Off cut of recycled paper mill	20%--30%

5.plant features:
1.)Environmental protection equipment: The complete set of unit produces
no smoke and no smell
2.) High efficiency and good performance: the output capacity of pure raw
is more than 80% . net oil yield over more than 40%
3. )The design of unit is reasonable and advanced :fatey and easy to use
6.oil parameter

Project	diesel	standard
Oxidation stability	2.2	≤2.5 mg/100ml
Sulfur content	0.3	M/m≤0.2
10% steamed residual carbon residue	0.33	M/m≤0.3
Ash content (10%)	0.16	%m/m≤0.01
Waste content (10%)	traces	/
Mechanical impurities	/	/
Density (g/ml)	0.85	0.83-0.87
Solidifying point ( ºC)	-10	0
Flash point (closed ) ( ºC)	45	55
Movement viscosity	3.5	(20 ºC) mm2/s 3.0-8.0
Combustion value(Kcal)	9500	8500
colority	1.2	≤3.5
cetane number	40	45
Acidity	/	MGkoh/100ml≤7

7. Terms and Condition
1) Payment term: 30% TT advance payment 70%TT payment before plant shifting .
2) Delivery time: for batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days
3) About installation: we will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
4) Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal wrong operation
8.other choice

Pyrolysis plant (convert waste to fuel oil )	Type	Daily capacity	Used for	Final Product and usage
	Batch type	5Ton 10ton 12ton 15ton	Waste tyre Plastic Rubber Oil sludge Oily waste Others	Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil
	Semi-continuous type	15Ton, 20Ton
	Fully continuous type	20ton 30ton 60ton
	Special type	20Ton 15ton

---
