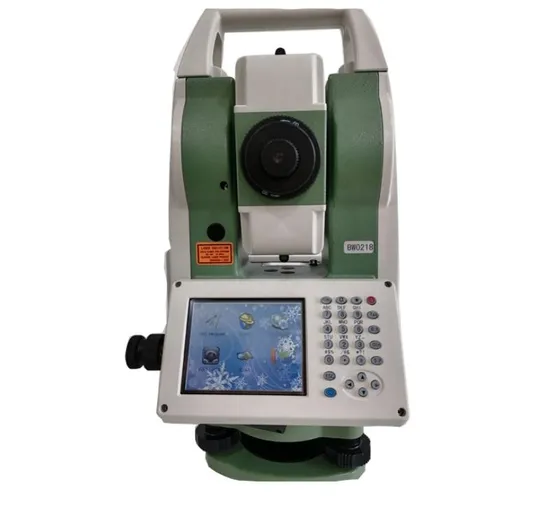

Survey Equipment China Total Station Instrument Foif Rts352

Product Description

Product Feature
Compact design with Windows CE 7.0 operating system
3.5" colour TFT LCD (320 x 240 dots) touch screen, transflective sunlight readable display
Professional onboard software: FOIF Fieldgenius,FOIF Survey or Carlson SurvCE
Long reflectorless measuring distance reaches to 1000m
Illuminated keyboard with light sensor, turn on in dark surroundings automatically
Multiple data interfaces,USB host, USB slave, RS-232C or Bluetooth connections are available
Smart battery managing system, display battery life in real-time
Guide light system for fast stake out measurement Detailed Photos
Product Parameters

Technical data
Telescope
Length/Image	156mm/Erect
Objective aperture	φ45mm
Magnification	30X
Field of view	1°30'
Shortest focus distance	1.0m
Angle measurement
Reading system	Absolute encoder
Angle unit	360°/400gon/6400mil, selectable
Display resolution	0.1″/0.5″/1″(or 0.02mgon/0.1mgon/0.2mgon)
Accuracy	2"
Distance measurement(R600)
Display resolution(m/inch selectable)	0.1mm/1mm
Laser class Prism	Class 1
Reflectorless/Reflective sheet	Class 3R
Measurement range (Good condition )
Reflectorless	1 to 600m
Reflective sheet/RP60	1 to 800m
Single prism	1 to 5000m
Accuracy
Prism	2mm+2ppm
Reflective sheet/RP60	3mm+2ppm
Reflectorless	1-150m:3mm+2ppm;>300m:10mm+5ppm150-300m:5mm+3ppm;
Measuring time	Initial:2s
Prism	typ.1.0-1.5s
Reflective sheet/RP60	typ.1.5s
Reflectorless	typ.1.5-5s, max. 20s
Distance measurement(R1000)
Laser class
Prism standard mode/Prism long mode	Class1/Class 2
Reflective sheet	Class 2
Reflectorless standard mode	Class 2
Reflectorless long mode	Class 3R
Measurement range (Good condition)
Single prism	1 to 5000m
Reflective sheet/RP60	1 to 800m
Reflectorless	1 to 1000m
Accuracy
Prism	2mm+2ppm
Reflective sheet/RP60	3mm+2ppm
Reflectorless	1-150m: 3mm+2ppm ; 150-300m: 5mm+3ppm; 300-500m:10mm+5ppm; >500m: 20mm+10ppm ;
Level vial sensitivity
Plate level vial	30″/2mm
Circular level vial	8′/2mm
Compensator	Dual axis compensator
Working range	±3′
Setting accuracy	1″
Laser plummet(Standard)
Accuracy	±1.0mm/1.5m
Laser class	Class 2/IEC60825-1
Laser brightness	Adjustable
Laser wave length	635nm
Optical plummet(Factory optional)
Accuracy	±0.8mm/1.5m
Image	Erect
Magnification	3 x
Focus range	0.5m to ∞
Display	3.5" colour TFT LCD (320 x 240 dots) touch screen transflective sunlight readable display
Power
Battery	3400mAh Li-ion Rechargeable
Output voltage	7.4V DC
Continuous operation time (Single distance measurement every 30 seconds)	8 hours
Charger	FDJ6-LI(100V /240V )
Charging time(at +20ºC)	Approx. 4 hours
Application programs
Data collection/Stake out/Resection/REM/MLM/Point to line
AREA/Z coordinate/OFFset/3D Road/Traverse adjustment
Tape measurement/section/Axis positioning measurement
Others
CPU	ARM Cortex A8
Memory	4GB internal memory
Sensors	Built-in temperature and pressure sensors
Keyboard	Alphanumerical illuminated key board, both sides
Guide Light System	Factory optional
Weight(including batteries)	5.5kg
Dimensions(WxDxH)	185x220x360mm
Operating temperature	-20ºC to +50ºC
Storage temperature	-40ºC to +70ºC
Interface	USB host/USB slave/RS-232C/Bluetooth(Optional)
Water and dust protection	IP55(IEC60529)
Data transfer&processing software	FOIF Geomatics Office(FGO)
Data collectorData collector	F58, fully rugged PDA(Optional)
