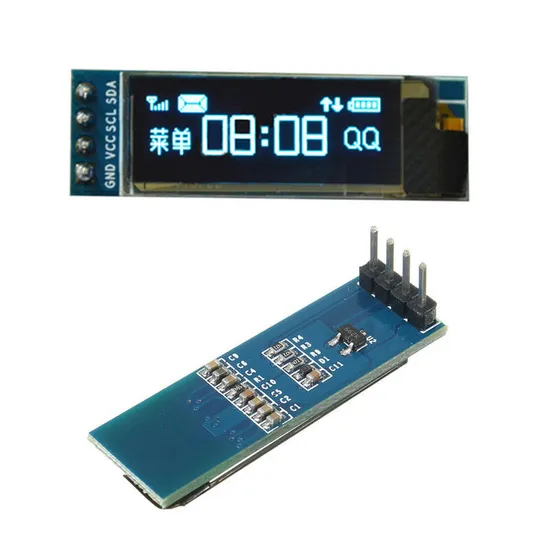

0.91 Inch 128X32 Iic I2c Blue OLED LCD Display DIY OLED Module for Arduino Project

Product Description

0.91 Inch 128x32 IIC I2C Blue OLED LCD Display DIY Oled Module for Arduino Project

91 Inch 128x32 IIC I2C Blue OLED LCD Display DIY Oled Module SSD1306 Driver IC DC 3.3V 5V For Arduino PIC

Specifications:
0.91 inch OLED screen with black and white or black and blue color display 128x32 resolution for clear display and high contrast Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display) Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required With IIC bus, only a few IOs can be used to light up the display Ultra-low power consumption: normal display is only 0.06W (far below the TFT display) Military-grade process standards, long-term stable work Provides a rich sample program for STM32, C51, Arduino, and Raspberry Pi platforms Provide underlying driver technical support

Name	Parameter
Display Color	white/blue
SKU	MC091GW/MC091GB
Screen Size	0.91(inch)
Screen Type	OLED
Driver IC	SSD1306
Resolution	128*32 (Pixel)
Module Interface	IIC interface
Active Area	22.384x5.584(mm)
Touch Screen Type	have no touch screen
Touch IC	have no IC
Module PCB Size	12.00x38.00(mm)
Visual Angle	>160°
Operating Temperature	-20~60
Storage Temperature	-30~70
Operating Voltage	3.3V~5V
Power Consumption	TBD
Rough Weight(Package containing)	5g

Interface Pin Difinition:

Pin Label	Pin description
GND	OLED power ground
VCC	OLED power positive (3.3V~5V)
SCL	OLED IIC bus clock signal
SDA	OLED IIC bus data signal
