Plant Use 1-2t/H Biomass Wood Pellet Complete Production Line Price for Sale

Product Description

Plant Use 1-2T/H Biomass Wood Pellet Complete Production Line Price For Sale
Product Description
Product Description
1. horizontal ring die biomass wood pellet machine can press biomass particles such as sawdust, straw, rice husk and etc.
2 high output, low consumption and noise, better stability and lower fault rates, Fatigue resistance is strong, continuous production, economy and durability.
The machine adopts special high quality materials and Advanced even shaft transmission, Key components are high quality alloy steel adds wear resisting material, Using German vacuum furnace heat treatment, Service life can be extended 5-7 times.
Product Parameters
Specification

Model	MainPower (KW)	Capacity (t/h)	Feeding Power (KW)	Conditioner Power (KW)	Die Diameter (mm)	Pellet size (mm)
LH- 320	37	0.2-0.3	1.5	2.2	320	6,8,10,12
LH- 350	55	0.5-0.7	1.5	3	350
LH- 420	90	0.8-1.2	2.2	5.5	420
LH- 480	90	1.0-1.3	2.2	5.5	480
LH- 508	132	1.7-2.2	2.2	5.5	508
LH- 558	160	2.0-2.5	2.2	5.5	572
LH- 678	185	2.5-3.5	3	11	678
LH- 768	250	4.0-5.5	4	18.5	768

Complete Wood Pellet Line

1-Wood Chipper	Chipping round fresh wood/logs into wood chips;
2-Hammer Mill	Crushing wood chips into sawdust with 3-5mm size;
3-Dryer	Drying wet wood sawdust, reduce the moisture ontent from 30-40% to 10-15%;
4. Wood Pellet Machine	Making dryied wood sawdust into pellet with 6/8/10/12mm size;
5. Cooler & Screen	Cooling hot wood pellet and screening the dust out of wood pellet;
6. Packing Machine	Packaging the wood pellet into bags, convenient for transportation/sale an stock;
7. Control Cabinet	Control all machines of wood pellet production line at production site.

1.wood chipper
1.It is a drum wood chipper of processing wood materials like wood branch, round logs, square blocks and wood pieces into wood chips with settled dimensions.
2.Two feeding type: top-feeding or side-feeding .
3.It is widely used in the production of paper making, edible fungus, shaving board, sawdust, high density board, and fiberboard etc.

2.hammer mill
1.This kind of hammer mill is widely used in farm, wood factory, etc.
2.The raw materials can be crushed into straw particles, whose diameter is 3-8mm.
3.The machine could be driven by electric motor or diesel engine.

3.Dryer
1.Rational internal structure, high efficiency, and remarkable energy-saving.
2.It can easily adjust the final moisture according to client's requirement.
3.Low outlet temperature and long service time of dust collection system to keep clean working environment. 4.New-type driving system design.
5.Using automatic temperature monitoring and controlling system, make operation more convenient.

4.wood pellet machine

1.Frequency converter control feeder flow, full stainless steel of cover and chute.
2.Ring die pellet mill generate less wear and tear when pelletizing, ar ind it is more energy efficient thanthe flat die pellet mill, so, ring die pellet mills are adopted in most large sca e pellet production lines.

5.cooler&screen

1.Adopt counter-flow cooling theory,the pellets cooling fully and evenly.
2.Adopt unique vibrate materials discha arging institution, discharging evenly, no residue.
3.The pellets after cooling, the tempera ture not higher room temperature 3-5 degrees.
4.Unique arc-shaped cooling bin,no coo oling dead corner.

6.packing machine
1.Completely digital working;Pneumatic controlling.
2.Convenient and Simple operation, low labor intensity.
3.Muti- weighing controller.
4.Automatic falling correction; Precise running by Sensor and Meter.
5.Various package sizes.
6.Heat sealer/stitching for bag sealing 7.Easy control(one-touch-type).

Raw Material and Final Product

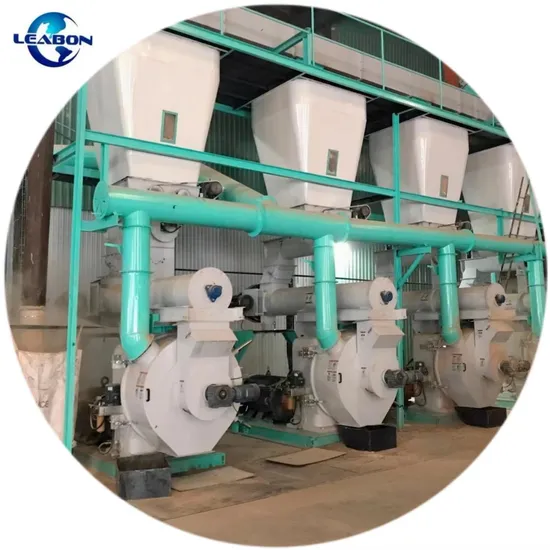

Production line case
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
After Sales Service
Our company and service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea
FAQ

Q1. What capacity would your need? -----The Capacity Range of Wood Pellet Machine: 0.2-0.3T/H;0.5-0.7T/H; 0.8-1.2T/H; 1-1.3T/H;1.7-2.2T/H; 2-2.5T/H;2.5-3.5T/H;4-5.5T/H.

Q2.What is your raw material? -----suitable for different raw material such as wood/logs, sawdust, straw,other biomass sources .

Q3.What is your raw material size? ----Best size for pressing high quality pellets is 3mm-5mm.

Q4.What is the moisture of your raw material? ----Better to be 10-15%.( If large than this, then we will recommend your Dryer Machine)

Q5.Final Pellets Size? ----We have Diameter for Pellets:6mm, 8mm, 10mm, 12mm, (Different Diameters for your Different Requirement.)
