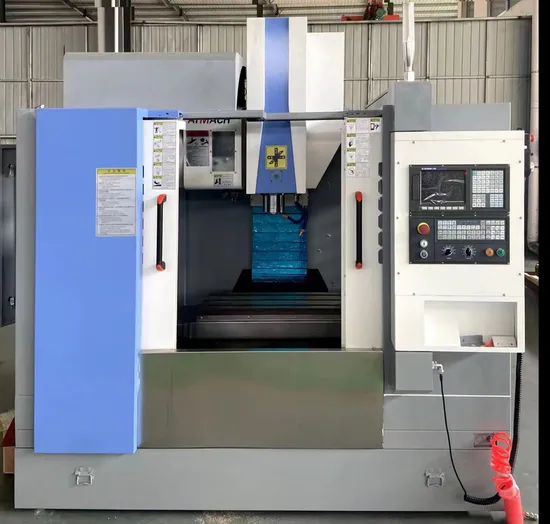

CNC Machining Center /CNC Vertical Milling Machine Vmc640

Product Description

Fearure:
1. The vertical machining center is X, Y, Z three-axis servo control half closed loop, structure and the overall size is compact and reasonable, the spindle adopts servo motor driven. Can be achieved for a variety of a complex parts such as disc, plate, shell,cam, mould, once clamping complete drilling, milling, boring, expansion, reaming, tapping and other process, are suitable for many varieties,medium or small batch production, for complex, high precision parts processing can show its superiority.
2. The main foundation parts such as pedestal, sliding seat, table, column, spindle box with high rigid iron structure, reinforcement is distributed internal of the base, sliding seat is box type structure. Ensure the basic pieces of high rigidity and resistance bending vibration performance; The main foundation parts with resin sand molding and after aging treatment, ensure the stability of the precision machine tool use for a long time.
3.The X, Y, Z guideway are all linear guideway, automatic forced lubrication, to achieve the high speed movement of the machine tool
4.Feeding of X, Y, Z directions adopts ball screw with high accuracy high strength, the speed is high;The drive motor is directly connected with the ball screw through the elastic coupling , feeding servo motor directly transmission of power to the high-precision ball screw, have no back gap, to ensure the positioning accuracy and synchronization of the machine tool;
5.Using Taiwan's high quality high speed automatic change tool magazine with umbrella type 10(standard configuration) or round plate type 16(option ), change tool accurate, time is short, high efficiency, after running test one million times, conform to the requirements of the reliability; tool magazine with damping stucture, can reduce the impact of the movement, ensure the service life of the automatic change tool magazine.
VMC640
(travel)
X(X-axis) 600 mm
Y(Y-axis) 400 mm
Z(Z-axis) 500mm
(Spindle nose to table) 100-600 mm
(Distance from guide to Spindle center) 560 mm

(Table size)800×360 mm
T(T-slot) 16×3×100 mm
(Table maximum load)400 kg

(Spindle collet) BT40
(Spindle motor power)5.5Kw
(Spindle Speed)6000rpm

(Cutting feed) 1-10000 mm/min
(Rapid feed)X/Y:24m/min
Z:20m

(Repeat ability accuracy) 0.005/300 mm

(Power requirement)16KVA
(Machine weight)2600 kg
(Machine dimension(LxWxH))2420×2200 ×2350

---
