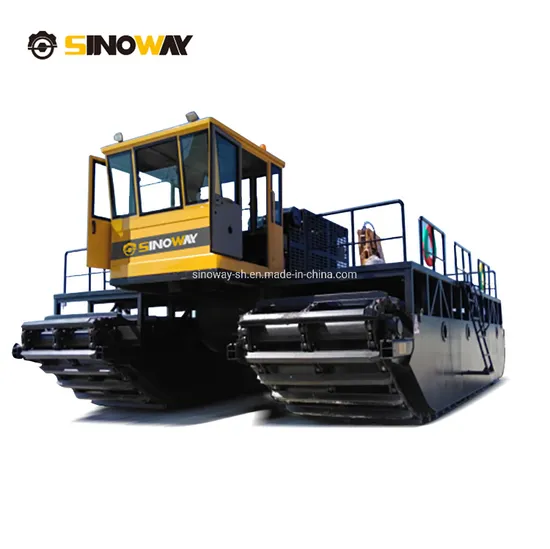

Main Features This amphibious buggy is equipped with heavy duty Cummins engine and Doosan hydraulic system. The platform comprises two tracked pontoon with heavy duty three strand chains for each, a deck area for drilling operating, a power pack to drive this big monster and jacking activities. Also, supplementary pontoons and hydraulic spuds piles can be fitted with according to client's need. The modular design allows to be easily transported by low bed trailer. Amphibious modules and attachments are designed to be able to fit into 40ft containers and both the assembly and disassembly processes can be achieved less than 3 hours if equipped with proper tools and crane.
High-strength weathering steel plate is used in the fabrication of the our pontoons. This steel had 5-8 times the atmospheric corrosion resistance and 30% more tensile strength than similar size A36 structural plate steel. Each pontoon has 3 manholes, providing 3 independent, watertight compartments. The bottoms of the pontoons are reinforced for rough terrain operations.
| Main Technical Specification | |
| Operating weight | 40 ton |
| Max. payload | 10 ton |
| Engine | Cummins |
| Type | 6-cylinders, water cool, turbocharging |
| Rated power | 325hp/2200rpm |
| Max. pressure | 320MPa |
| Max. flow | 2×360L/min |
| Main pump | Doosan |
| Multi-way valve | Doosan |
| Control valve | Doosan |
| Travel motor | Doosan |
| Travel speed on land | 0~3.0km/h |
| Travel speed on water | 0~1.0km/h |
| Grade ability | 30° |
| Hydraulic winch's max pulling force | 20ton |
| Hydraulic winch's total rope length | 50m |
| Ground pressure | 0.125Kgf/cm2 |
| Overall size (L×W×H) | 10200×6200×3500mm |
| Width of pontoon/length of pontoon | 2400mm/1800mm |
| Platform size (L×W×H) | 8500×6000×2000mm |
| Cabin | All-steel broad cab, 360 visual angle,
centralized control operator panel, ratating chair, air conditioner |
| Crane With Foldable Arm | |
| Crane capacity | 8ton |
| Max. lifting range | 9.7m |
| Max. lifting moment | 160kN.m |
| Max. lifting height | 12.3m |
| No. of telescopic arm sections | 3pcs |
| Rotary range | Pros and cons to 360°, continuous rotaion ≤3r/min |
