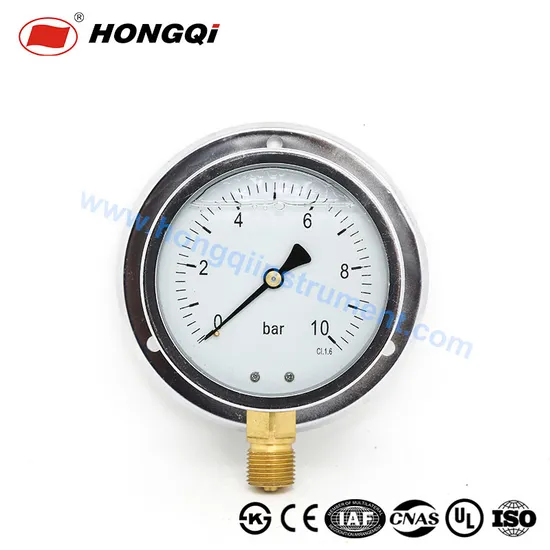

100 - mm Glycerine - Filled 0 - 10bar Pressure Gauge/Manometer

Product Description

100 - mm Glycerine - filled 0 - 10bar Pressure Gauge/Manometer
A full stainless steel pressure gauge is a pressure measuring instrument that is made entirely out of stainless steel material. It is used to measure the pressure of liquids and gases in various applications and industries, including oil and gas, chemical manufacturing, and food processing.
Full stainless steel pressure gauges are highly durable, resistant to corrosion, and can withstand high pressures and temperatures. They are designed to provide accurate readings and are suitable for use in harsh environments.
An oil-filled pressure gauge is a type of pressure measurement device that is filled with oil or any other suitable liquid. It is designed to withstand high-pressure environments and harsh conditions. The oil-filled gauge typically has a metal casing or a stainless-steel case that encloses the gauge mechanism, and the interior is filled with oil. The oil provides a damping effect to reduce the effects of vibration, pulsation, and shock on the gauge's internal components. The oil-filled gauge's advantages include increased accuracy due to its dampening effect, a longer lifespan due to less wear and tear on components, and better corrosion resistance.

Product name:	100mm bottom connection panel mount pressure gauge
Diameter:	4"(100mm)
Pressure range:	-1~0~1000bar
Accuracy:	±1.0%, ±1.6%
Operation temperature:	5°C to +55°C
Case:	Stainless steel
Cover Ring:	Stainless steel
Burdon tube:	Brass
Connector:	Brass
Movement:	Brass
Dial :	Aluminum
Pointer:	Aluminum
Window:	PC/organic Glass, Safety Glass
Thread:	1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:	Glycerine filled
Sealing plug:	IP65

---
