| Type | Smartphone |

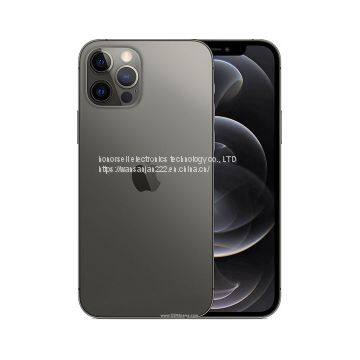

| Model | iPhone 12 Pro Max |
| Status | Announced |
| Release Date | Exp. release 2020, November 13 |
| SIM | Single SIM (Nano-SIM and/or eSIM) or Dual SIM (Nano-SIM, dual stand-by) - for China |
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| OS | iOS 14 |
| Body | |
| Dimensions | 160.8 x 78.1 x 7.4 mm (6.33 x 3.07 x 0.29 in) |
| Weight | 228 g (8.04 oz) |
| Colors | Silver, Graphite, Gold, Pacific Blue |
| Body Material | Glass front (Gorilla Glass), glass back (Gorilla Glass), stainless steel frame |
| W & D Proof | IP68 dust/water resistant (up to 6m for 30 mins) Apple Pay (Visa, MasterCard, AMEX certified) |
| Display | |
| Screen Size | 6.7 inches, 109.8 cm2 (~87.4% screen-to-body ratio) |
| Type | Super Retina XDR OLED, HDR10, 800 nits (typ), 1200 nits (peak) |
| Resolutions | 1284 x 2778 pixels, 19.5:9 ratio |
| PPI | (~458 ppi density) |
| Multi-touch | Yes |
| Protection | Scratch-resistant glass, oleophobic coating Dolby Vision Wide color gamut True-tone |
| Networks | |
| 5G | 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 40, 41, 66, 77, 78, 79 Sub6 |
| 4G | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 |
| 3G | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
| 2G | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM) - for China CDMA 800 / 1900 |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps |
| EDGE | Yes |
| GPRS | Yes |
| Memory | |
| RAM | 6 GB |
| Storage | 128 GB / 256 GB / 512 GB |
| Camera | |
| Rear Quad | 12 MP, f/1.6, 26mm (wide), 1.7µm, dual pixel PDAF, sensor-shift OIS 12 MP, f/2.2, 65mm (telephoto), 1/3.4", 1.0µm, PDAF, OIS, 2.5x optical zoom 12 MP, f/2.4, 120˚, 13mm (ultrawide), 1/3.6" TOF 3D LiDAR scanner (depth) |
| Features | Quad-LED dual-tone flash, HDR (photo/panorama) |
| Videos | 4K@24/30/60fps, 1080p@30/60/120/240fps, 10‑bit HDR, Dolby Vision HDR (up to 60fps), stereo sound rec. |
| Front Dual | 12 MP, f/2.2, 23mm (wide), 1/3.6" SL 3D, (depth/biometrics sensor) |
| CPU | |
| CPU | Hexa-core |
| Chipset | Apple A14 Bionic (5 nm) |
| GPU | Apple GPU (4-core graphics) |
| Battery | |
| Type | Li-ion battery |
| Capacity | 3687 mAh |
| Removable | Non-Removable |
| Fast charging | Fast charging 20W, 50% in 30 min (advertised) USB Power Delivery 2.0 |
| W Charging | Qi fast wireless charging 15W |
| Commons | |
| Loudspeaker | Yes, with stereo speakers |
| Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer Siri natural language commands and dictation |
| GPS | Yes, with A-GPS, GLONASS, GALILEO, QZSS |
| USB | Lightning, USB 2.0 |
| Bluetooth | 5.0, A2DP, LE |
| Wi-Fi | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot |
| NFC | Yes |
