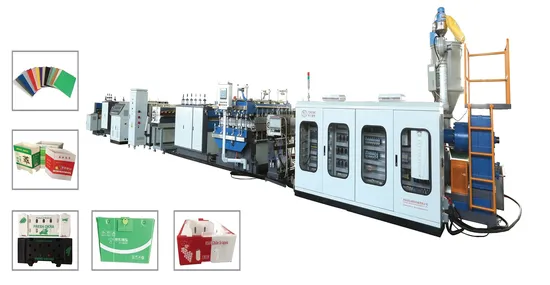

PP Corrugagted Plastic Hollow Sheet Making Extrusion Production Machine to Make Turnover Box

Product Description

Our company have been develop the PP hollow corrugated sheet making machine since 2015,now we have the machines for the PP hollow grid plate width from 1220mm to 2450mm and thickness from 1.5mm to 12mm.We have different model production line,such as the 1400 type PP hollow sheet extruder machine,1860 type PP corrugated sheet production line,2300 type PP hollow corrugated board making machine,2600 type plastic hollow grid panel making machine,and for each model,we have the co-extrusion type for customer choose.The co-extruder type can use 20%-60% fillermatch for reduce the cost,so our customer can produce the cost competitiveness sheet with goog quality.Our machine have the advantage of high output,easy operation,high precision,good products with smooth surface straight rib.

PP hollow plastic corrugated sheet production machine can produce the sheet with the width of 1000-2800mm.We can provide the all auxilairy machine for plastic PP hollow sheet to make box.The PP hollow sheet/corrugated sheet is widely used in fileds of machinery,electron,appliance,food,advertising,interior decoration material,glass, agricultural product etc packing and transporting.

model	sheet width mm	sheet thickness mm	extruder size	motor kw
TSGZB-1400	1250	2-6, 8-12	100/36	55-75
TSGZB-1800	1700	2-6, 8-12	120/36	75-90
TSGZB-2300	2150	2-6, 8-12	120/36	90-110
TSGZB-2600	2450	2-6, 8-12	120/36	90-110
TSGZB-3000	2800	2-6, 8-12	150/36	132
TSGZB-2600(F)	2450	2-6, 8-12	120/36&80/36	110+37

High-efficiency Extruder High quality single screw extruder
Equipped with:
Automatic loader
Dryer
SIEMENS motor
ABB inverter
High quality mould
Material:high quality alloy steel
Equipped with :
Screen changer
Melting pump
Accuracy control device
Size can be customized by requirement
Calibrating table/Sizing platform Pneumatic lift control
Vaccum system
Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type.
Haul-off device There are 2 sets of haul-off device in the line.
Adopt the Nitrile rubber roller.
Heating Oven
Material:304 sainless steel
separately temperature control system
Automatic cutter
For side cutting and length cutting
The waste scrap can be recycled.
PLASTIC BOX MAKING PROCESS:
PP hollow sheet turnover box main material is a PP hollow sheet, and then after the pressure cut, torn edges, stitching, assembly and made of a series of processing flow.

Item	PP packing box making Machine	Note
1	Material Mixing machine	For mixing material, such as chemicals, color masterbatch, filling masterbatch, recycle material
2	PP hollow corrugated sheet extrusion line	For makeing Pp hollow corrugated sheet for required width and thickness.width: 1200-2700mm thickness: 2-12mm
3	PP hollow sheet die cutting machine	For cutting the Pp sheet into required shape for folding box
4	PP hollow sheet printing machine	for printing logo and designs on the Packing box, there is different printing machine, such as single color printer, double colorprinter, four color printer.
5	PP hollow sheet welding machine	For folding the Pp hollow sheet into required box shape, welding machine and bookbinding machine both can work for it
6	PP hollow sheet bookbinding machine

---
