Model

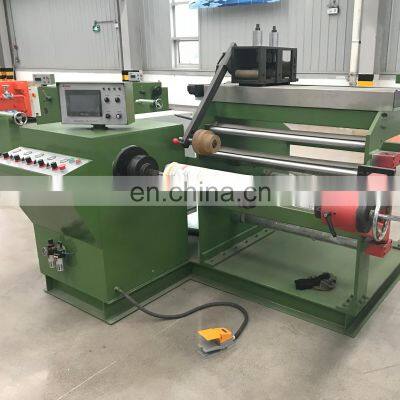

| GRX-800
|
General
| |
Dimension
| 2550×2180×1980mm
|
Weight
| 1000kg
|
Power supply
| 3×220(380)(415)V 50(60)HZ for you need
|
Whole power
| 5 KW
|
Coil
| |
Coil diameter
| 80-600mm
|
Coil width (Max)
| 800mm
|
Coil weight(Max)
| 500kg |
| Coil cross section | Round,oval,rectangle |
Conductors
| |
| Round wire diameter | Φ0.3mm—Φ3mm |
Flat wire
| 3×12mm
|
Winding shaft
| |
Speed adjustment method
| Frequency stepless control
|
| Rotation speed (Max) | 240rpm |
| Torque | 300Nm |
| Traverse type | AC Servo Motor driven with ball screw,gap between each turns 0.01mm |
| Wire traverse width | 700mm |
