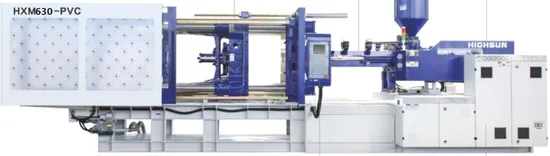

Soft PVC Foot Pad Plastic Injection Molding Machine Hxm630I/ Autopart Injection Molding Machine

US$78,000.00-132,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HXM630I PVC
Type
Plastic Injection Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
According to Countries
Showroom Locate
Malaysia,Russia,Turkey,Uzberkistan
Condition
New
Machine Weight
28.2ton
Transport Package
Standard Packing
Specification
9.22*2.87*2.61M
Trademark
HIGHSUN
Origin
China
HS Code
8477101090
Production Capacity
7000sets/Year

Packaging & Delivery

Package Size
937.00cm * 219.00cm * 248.00cm
Package Gross Weight
28000.000kg

Product Description

HIGHSUN PVC fitting machine, clamping force:218-1100T Adopt the special designed screw & barrel for PVC material, install the air fan for cooling barrel, to avoid the material overheating and coking; Increased bigger grade oil motor to facilitate PVC raw material plasticizing and molding; Enlarge the width of clamping unit cover sheet, to suit PVC fitting molds (core puller cylinder) installation convenience; Supply with special technical solution for PVC injection, not only modify the screw & barrel like others, but also the special solution contains complete hydraulic system and injection unit.
HX(*)630PVC
Injection Unit
Screw diameter mm 80
Screw L/D ratio L/D 21.3
Injection capacity in theory cm³ 2110
Injection weight(PVC) g 2532
Injection pressure MPa 168
Injection rate g/s 558
Plasticizing capacity g/s 74
Screw speed rpm 130
Clamping Unit
Clamping force KN 6300
Moving mould-plate stroke mm 870
Max.Mould height mm 900
Min.Mould height mm 350
Space between tie-bars mm 900x850
Hydraulic ejector force KN 200
Hydraulic ejector stroke mm 260
Ejector number n 17
Other
Pump pressure MPa 16
Motor/Driving power KW 30x2
Heating capacity KW 28.85
Machine dimension m 9.22*2.87*2.61
Machine weight t 28.2
Oil tank capacity L 1156
