Solid State Hf Welder From China Top Quality Solid State Welder for Tube Mill

Product Description

Product Description

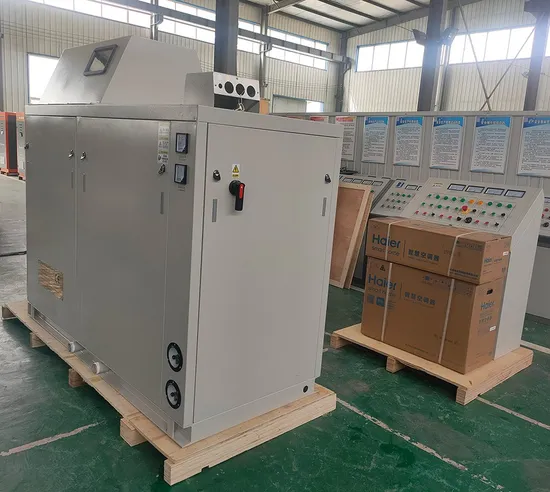

Solid state high frequency welder
The solid state HF welder is used for welding the carbon steel and high strength steel pipe(round pipe,square tube, rectangular tube),brass welding, aluminum spacer bar welding, H-beam welding, Finned tube welding, etc.
HF welding equipment is an electrical and mechanical system used to realize HF welding. Hf welding equipment is composed of hf welding machine and steel tube forming machine.There are two welding methods, that is induction welding and contact type welding.
Besides solid state welding machine, there is another important DC motor drive device of ERE tube mill.
The tube mill DC drive cabinet is mainly used for the control of DC motor of tube mill line.
With merits of wide speed regulation, super dynamic performance,it can also achieve
multiple motor linkage.
The pipe mill DC drive cabinet has three series : computer-control stimulation model, full-digital euro drive original model and full-digital euro drive expansion model. For the euro drive model, we adopt American PARKER brand Euro to make sure the quality of machine.
Detailed Photos

Product Parameters

Model	GGP100-0.45-H	GGP150-0.4-H	GGP200-0.35-H	GGP250-0.35-H	GGP300-0.35-H	GGP400-0.3-H	GGP500-0.3-H	GGP600-0.3-H
Output Power	100 KW	150 KW	200 KW	250 KW	300 KW	400 KW	500 KW	600 KW
DC Power	120 KW	180 KW	240 KW	300 KW	360 KW	480 KW	600 KW	720 KW
Rated Voltage	450 V	450 V	450 V	450 V	450 V	450 V	450 V	450 V
Rated Current	270 A	400 A	530 A	670 A	800 A	1070 A	1330 A	1600 A
Frequency	400~450 KHZ	350~400 KHZ	300 ~350 KHZ	300 ~350 KHZ	300 ~350 KHZ	200 ~300 KHZ	200 ~300 KHZ	200 ~300 KHZ
Rectifier Cabinet Size (mm)	1500x900x2000	1500x900x2000	1500x900x2000	1800x900x2000	1800x900x2000	1800x900x2000	2000x1150x2000	2000x1150x2000
Inverter Cabinet Size (mm)	1750x700x1100	1750x700x1100	1750x700x1400	1800x700x1600	1800x700x1800	2000x700x1700	2000x700x1800	2000x700x2000
Operation Console Size (mm)	800x500x1100	800x500x1100	800x500x1100	800x500x1100	800x500x1100	800x500x1100	800x500x1100	800x500x1100
Efficiency	≥ 85 %	≥ 85 %	≥ 85 %	≥ 85 %	≥ 85 %	≥ 85 %	≥ 85 %	≥ 85 %

Main technical data of pipe mill full-digital Euro DC drive cabinet:

Model	Rated current	Rated voltage	Rated power
OL-70A/460V	70A	460V	30KW
OL-110A/460V	110A	460V	45KW
OL-150A/460V	150A	460V	60KW
OL-180A/460V	180A	460V	75KW
OL-270A/460V	270A	460V	110KW
OL-360A/460V	360A	460V	150KW
OL-450A/460V	450A	460V	190KW
OL-800A/460V	800A	460V	330KW

Our Advantages
Features of solid state high frequency welder
Using MOSFET semiconductor , no life limit, which make sure the long life time of welder . Adopting SIEMENS PLC and HMI to connect the power supply and the production line to achieve real-time monitoring of the whole production line All kinds of protection functions. Including short circuit, open circuit , over current, over voltage etc. High speed welding but good welding quality . Energ-saving up to 25~30% compared with vacuum tube welder .

---
