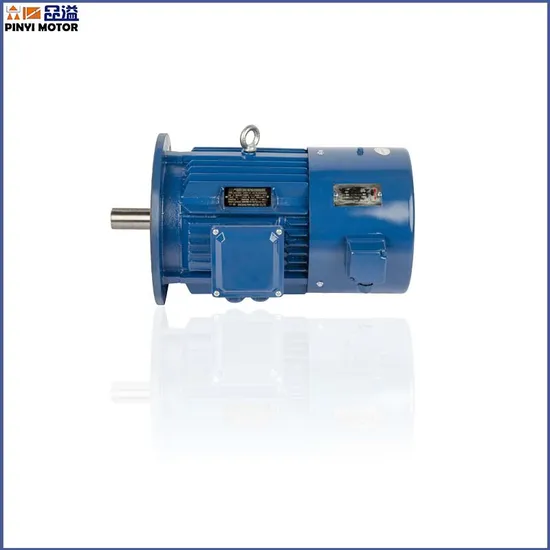

Yvf2-132s-4-5.5kw Special Three-Phase Asynchronous Motor Electric Motor for Variable Frequency Speed Regulation electric Motor

Product Description

YVF2-132S-4-5.5KW special three-phase asynchronous motor electric motor for variable frequency speed regulation electic motor

Rated Voltage:			220/440V, 220/380V, 380/660V, 415V or request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.55~250kW
Insulation Class:			F
Altitude:			≤1000m
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B35,V1

MODEL	Power(KW)	Rated current(A)	Rated torque(NM)	Constant torque frequency range(HZ)	Constant power frequency range(HZ)
Synchronous speed 3000r/min
YVF2-80M1-4	0.55	1.6	3.8	5~50	50~100
YVF2-80M2-4	0.75	2.0	5.2
YVF2-90S-4	1.1	2.9	7.5
YVF2-90L-4	1.5	3.7	10
YVF2-100L1-4	2.2	5.2	14.9
YVF2-100L2-4	3	6.8	20
YVF2-112M-4	4	8.8	26.5
YVF2-132S-4	5.5	11.8	36.5
YVF2-132M-4	7.5	15.6	50
YVF2-160M-4	11	22.3	72
YVF2-160L-4	15	30.1	98
YVF2-180M-4	18.5	36.1	120
YVF2-180L-4	22	42.7	143
YVF2-200L-4	30	57.6	195
YVF2-225S-4	37	69.9	240	3~50
YVF2-225M-4	45	84.7	291
YVF2-250M-4	55	103	355
YVF2-280S-4	75	140	484
YVF2-280M-4	90	167	580
YVF2-315S-4	110	201	710
YVF2-315M-4	132	240	852
YVF2-315L1-4	160	288	1032
YVF2-315L2-4	200	359	1290

Component Parameters related to variable frequency motors

Motor	Frame	80	90	100	112	132	160	180	200	225	250	280	315
Cooling fan	Power	60 (10)*	60 (25)*	60 (25)*	60 (25)*	40	40	230	230	230	230	370	500
	Voltage	Single phase 220V or three phase 220V, 380V 1-PH220V or 3-PH220V, 380V								Three-phase 380V 3-PH380V
Brake	Brake torque	7.5	15	30	40	75	150	200	300	450	-	-	-
	Excitation power	50	60	80	110	130	150	150	200	200	-	-	-
	Excitation voltage	DC24V,AC220V,AC380V									-	-	-
Photoelectric encoder	Incremental encoders

Installation structure type
Common installation structure type, and the applicable frame size is shown in the table below

Frame number

Basic installation structure

Derived installation type

B3

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

80~160

√

√

√

√

√

√

√

√

√

√

√

√

180~280

√

√

√

√

-

-

-

-

-

-

-

-

315

√

-

√

√

-

-

-

-

-

-

-

-

Note: "√" indicates the type of structure that can be manufactured


Zhejiang Pinyi Motor Co., Ltd is a medium-sized enterprise with a registered capital of 10 million, which integrates research, development, manufacturing, sales and after-sales service. ; In order to comprehensively consider the long-term strategic layout, and to ensure that the products continue to have comprehensive advantages in the market in 2013, the company integrated several upstream suppliers and companies, and gathered a number of scientific researchers in the important R&D links of motors to provide our company products in the terminal. The positioning of special machinery and equipment for market enterprises has laid a solid foundation; the company has integrated the original management experience into the quality management system of GB/T19001-2008 and IS09001:2008, and the products have passed CE certification to ensure the quality of Pinyi Motors Long-lasting and stable performance; the company has always adhered to the marketing concept of "manufacturing high-quality products with character, and occupying the market with high-quality products", focusing on building excellent brands, continuously improving enterprise quality, and pursuing progress and development In the course of years of development, Pinyi has built a customer-centric marketing network. Its products sell well in nearly 30 provinces and foreign regions across the country, and are well received by consumers, especially by old customers.
Pinyi's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/P55:
* YE4 Super High Eficiency Secondary Energy Efficiency Motor;
* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;
* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YVF2 Frequency conversion series three -phase asynchronous motor;
* YD2 series two-speed multi-speed three phase asynchronous motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;
* YBX3 series flameproof three- phase asynchronous motor;
* YVFEJ2 series variable frequency brake three-phase asynchronous motor,
* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,
* special motor for stone machinery and equipment, custom-made motors with special specifications for power
requirements, and motors with different frequencies and different pressures.
* The protection grades include IP55, IP66, etc. and various special motors derived from them.
In line with the principle of "customer first, integrity first', the company has established long-term cooperative relations with
many enterprises. We take the concept of making products with heart, and aim to create high-quality products and provide satisfactory services. We are determined to create perfect, attention to detail, The goal is to provide efficient and
powerful green power products.
We warmly welcome friends from all walks of life to visit, inspect, negotiate business and create billiant future together.
1,Q: Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for the electric molors.
2. Q: What is your terms of payment ?
A: 30% deposit before production,balance T/T before delivery.
3. Q: Are you a trading company or manufacturer?
A.We are a manufacurer with advanced equ pment and experienced workers.
4. Q: What's your production capacity?
A:4000-5000 PCS/MONTH.
5. Q: Free sample Is available or not?
A:Yes, we can supply free sample if customer agree to pay for the courier cost.
6. Q: Do you have any certiflcate?
A:Yes, we have CE certificate and SGS certificate report.

---
