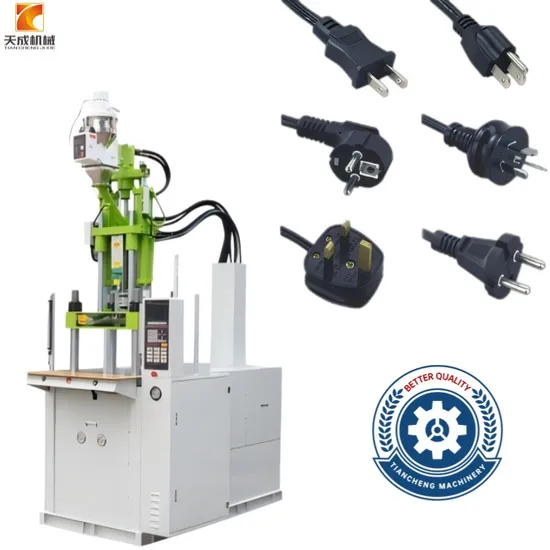

USB Cable Plug Connector Injection Making Machine / Plastic Injection Moulding Machine

Product Description

Welcome to Dongguan Tiancheng Machinery Co., Ltd
Product Description
Yes, as seen in the video, you can use this machine to produce Plastic PVC Electric Plug Data Cable Injection Molding Machine
Detailed Photos
Product Parameters

Brand Name	TianCheng		Style	VERTICAL
Condition	New		Model NO.	TC-550-P
Screw Diameter (MM)	30--36		Max.Hydraulic Pressure(Kg/cm3)	140
Maximum injection Pressure (Kg/cm2)	2177--1513		Pump Output (L/min)	57
Theoretical Shot Volume (Cm3)	98--142		Oil Tank Capacity (L)	166
Maximum Shot Weight (G/oz)	87/3.0--160/5.6		Cooling Water Consumption(L/H)	600-800
Injection Rate (Cm3/sec)	68--97		Electric Power (KW)	7.5
Screw Speed (R/Min)	0--210		Total capacitance (KW)	2.8
Screw Rate (MM)	140		Total Wattage (KW)	/
Nozzle Retraction Stroke (MM)	220		Machine Specification(M)	1.8*1.2*2.6
Clamping Force (Ton)	55		Weight of Machine (KG)	2500
Opening Force (Ton)	7.2		Plastic Processed	PP, ABS, FRPP/PVC, PE, ABS/PP, PE/PP
Platen Size (MM)	/		After-sales Service Provided	Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Distance Between Tie-Bere (MM)	180/240		After Warranty Service	Video technical support, Online support, Spare parts, Field maintenance and repair service
minimum Mold Thickness (MM)	180/240		Warranty	1 year
Opening Stroke (MM)	200		Applicable Industries	Manufacturing Plant, Construction works , Energy & Mining, Other
Max-Distance opening mold (MM)	380/440
Max.Mold Size	450*400
Ejector Force (Ton)	1.3
Ejector Stoke (MM)	/

Packaging & Shipping
Company Profile
After Sales Service
Our Services
1. 24 hours services, the answers to any questions will be replied sooner.
2.Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4. After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5.The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6.12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Why choose TianCheng Machinery Co., Ltd.?

A4: "Tiancheng Machinery, we sincere, you succeed!" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

---
