Popular Two Colour Hard Candy Depositing Machine

Product Description

DESCRIPTION:

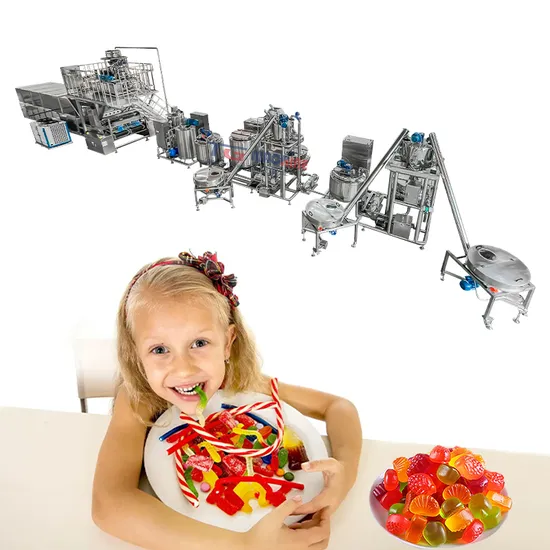

GD600hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition.It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
The strong point of the line is as following:
1.PLC /computer process control available;
2.An LED touch panel for easy operating;
3.The standard production capacity from 150 kgs/h to 450kgs/h;
4.Optional (mass) flowing controlled by Frequency inverters ;
5.Inline injection, dosing and premixing techniques for the proportional addition of liquid(milk);Dosing pumps for the automatic injection of colors, flavors and acids;
6.One set of extra chocolate paste injection system for making chocolatecentral candies;"two/threecolor striped depositing","two or three color double layers depositing", "central filling", "clear" hard candies and etc.Can be made.
7.Moulds can be made according to the candies samples provided by the customer."
SPECIFICATIONS:
This machine can produce hard candy, 2 color candy, fruit candy, butter scotch,etc..
TECHNICAL SPECIFICATIONS:

Model	GD150	GD300	GD450	GD600
Output(kg/h)	150	300	450	600
Max candy weight	6g	6g	6g	6g
Speed	55~65 n/min	55~65 n/min	55~65 n/min	55~65 n/min
Steam consumption Steam pressure	250kg/h, 0.5~0.8MPa	300kg/h, 0.5~0.8MPa	400kg/h, 0.5~0.8MPa	500kg/h, 0.5~0.8MPa
Compressed air consumption Compressed air pressure	0.2m3/min, 0.4~0.6MPa	0.2m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa	0.25m3/min, 0.4~0.6MPa
Electric power needed	18kW/380V	27kW/380V	34kW/380V	42kW/380V
Total length(m)	15	17	17	20
Gross weight	3500kg	4000 kg	4500 kg	5000 kg

ADVANTAGES:
1) Reliability, easy cleaning and maintenance
2) Accurate filling and simple changeover.
3) Servo-controlled accurate movement
4) Automatic belt tensioning
Company Information
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years' fabrication experience.It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery.Our machineries have been exported to East European, south America, middle east, southeast Asia.
Why choose us?
A.Established in 1982, nearly 20-year experiences in the area of machinery manufacturing of food processing;
B.Cooperate with well-known enterprises for some mechanical parts;
C.Adopt environment-friendly and food-grade materials;
D.Offer customized machineries and give suggestion for plant layout.
Services
After-sale services for all the customers:
A.Free training of machine installation, operation and maintenance will be provided;
B.Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
C.Technical support will be offered by call, email or video etc;
D.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
Shipment
Wooden packing as per export standard.
If you interested in our products,please contact us.I will spare no effort to help you

---
