Medium Voltage Power Cables N2xsy, Na2xsy, N2xs2y, Na2xs2y Cables

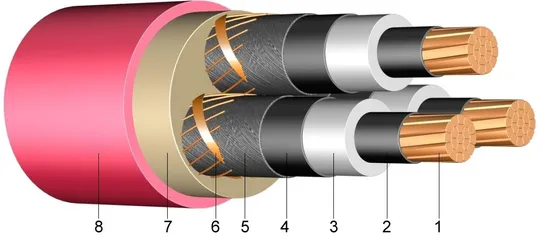

Product Description

Product Description

Technical Data European
XLPE-insulated power cables to DIN VDE 0276 part 620, HD 620 S1 and IEC 60502Temperature Range During installation up to -20°C/-4°FOperating Temperature Max. +90°C/194°FShort Circuit Temperature +250°C/482°F (short circuit duration up to 5 sec.)Nominal Voltages U0/U 6/10 kV, 12/20 kV, 18/30 kV	Operating Voltages for 6/10 kV = max. 12 kV 12/20 kV = max. 24 kV 18/30 kV = max. 36 kVTest Voltages for 6/10 kV = 15 kV 12/20 kV = 30 kV 18/30 kV = 45 kVMinimum Bending Radius During installation max. 15x cable ØPower Ratings Table See Technical Information

Parameter

Description & No. Conductors x cross-sec. mm2, Nominal Voltage	Operation Voltage max.	Insul. Thick-ness mm	Jacket Thick-ness mm	Outer Dia. min.-max.	Copper Weight kg/km	Alu weight kg/km	Weight ca. kg/km	AWG
NA2XSY 6/10kV 1X50 rm/16	12	3.4	2.5	24.0 - 29.0	182.0	145.0	780.0	1
NA2XSY 6/10kV 1X70 rm/16	12	3.4	2.5	26.0 - 31.0	182.0	203.0	875.0	2/0
NA2XSY 6/10kV 1X95 rm/16	12	3.4	2.5	27.0 - 32.0	182.0	276.0	990.0	3/0
NA2XSY 6/10kV 1X120 rm/16	12	3.4	2.5	29.0 - 34.0	182.0	348.0	1110.0	4/0
NA2XSY 6/10kV 1X150 rm/16	12	3.4	2.5	30.0 - 35.0	182.0	435.0	1240.0	300 kcmil
NA2XSY 6/10kV 1X150 rm/25	12	3.4	2.5	30.0 - 35.0	283.0	435.0	1310.0	300 kcmil
NA2XSY 6/10kV 1X185 rm/25	12	3.4	2.5	32.0 - 37.0	283.0	537.0	1460.0	350 kcmil
NA2XSY 6/10kV 1X185 rm/16	12	3.4	2.5	32.0 - 37.0	182.0	537.0	1405.0	350 kcmil
NA2XSY 6/10kV 1X240 rm/25	12	3.4	2.5	34.0 - 39.0	283.0	696.0	1660.0	500 kcmil
NA2XSY 6/10kV 1X240 rm/16	12	3.4	2.5	34.0 - 39.0	182.0	696.0	1615.0	500 kcmil
NA2XSY 6/10kV 1X300 rm/25	12	3.4	2.5	36.0 - 41.0	283.0	870.0	1910.0	600 kcmil
NA2XSY 6/10kV 1X400 rm/35	12	3.4	2.5	40.0 - 45.0	394.0	1160.0	2315.0	750 kcmil
NA2XSY 6/10kV 1X500 rm/35	12	3.4	2.5	43.0 - 48.0	394.0	1450.0	2750.0	1000 kcmil
NA2XSY 12/20kV 1X50 rm/16	24	5.5	2.5	28.0 - 33.0	182.0	145.0	950.0	1
NA2XSY 12/20kV 1X70 rm/16	24	5.5	2.5	30.0 - 35.0	182.0	203.0	1110.0	2/0
NA2XSY 12/20kV 1X95 rm/16	24	5.5	2.5	31.0 - 36.0	182.0	276.0	1220.0	3/0
NA2XSY 12/20kV 1X120 rm/16	24	5.5	2.5	33.0 - 38.0	182.0	348.0	1310.0	4/0
NA2XSY 12/20kV 1X150 rm/16	24	5.5	2.5	34.0 - 39.0	182.0	435.0	1460.0	300 kcmil
NA2XSY 12/20kV 1X150 rm/25	24	5.5	2.5	34.0 - 39.0	283.0	435.0	1520.0	300 kcmil
NA2XSY 12/20kV 1X185 rm/16	24	5.5	2.5	36.0 - 41.0	182.0	537.0	1660.0	350 kcmil
NA2XSY 12/20kV 1X185 rm/25	24	5.5	2.5	36.0 - 41.0	283.0	537.0	1720.0	350 kcmil
NA2XSY 12/20kV 1X240 rm/25	24	5.5	2.5	39.0 - 44.0	283.0	696.0	1910.0	500 kcmil
NA2XSY 12/20kV 1X240 rm/16	24	5.5	2.5	39.0 - 44.0	182.0	696.0	1860.0	500 kcmil
NA2XSY 12/20kV 1X300 rm/25	24	5.5	2.5	41.0 - 46.0	283.0	870.0	2220.0	600 kcmil
NA2XSY 12/20kV 1X400 rm/35	24	5.5	2.5	44.0 - 49.0	394.0	1160.0	2620.0	750 kcmil
NA2XSY 12/20kV 1X500 rm/35	24	5.5	2.5	47.0 - 52.0	394.0	1450.0	3030.0	1000 kcmil
Description & No. Conductors x cross-sec. mm2, Nominal Voltage	Operation Voltage max.	Insul. Thick-ness mm	Jacket Thick-ness mm	Outer Dia. min.-max.	Copper Weight kg/km	Alu weight kg/km	Weight ca. kg/km	AWG
NA2XSY 18/30kV 1X50 rm/16	36	8.0	2.5	33.0 - 38.0	182.0	145.0	1260.0	1
NA2XSY 18/30kV 1X70 rm/16	36	8.0	2.5	35.0 - 40.0	182.0	203.0	1360.0	2/0
NA2XSY 18/30kV 1X95 rm/16	36	8.0	2.5	36.0 - 41.0	182.0	276.0	1510.0	3/0
NA2XSY 18/30kV 1X120 rm/16	36	8.0	2.5	38.0 - 43.0	182.0	348.0	1610.0	4/0
NA2XSY 18/30kV 1X150 rm/25	36	8.0	2.5	39.0 - 44.0	283.0	435.0	1810.0	300 kcmil
NA2XSY 18/30kV 1X150 rm/16	36	8.0	2.5	39.0 - 44.0	182.0	435.0	1760.0	300 kcmil
NA2XSY 18/30kV 1X185 rm/16	36	8.0	2.5	41.0 - 46.0	182.0	537.0	1960.0	350 kcmil
NA2XSY 18/30kV 1X185 rm/25	36	8.0	2.5	41.0 - 46.0	283.0	537.0	2020.0	350 kcmil
NA2XSY 18/30kV 1X240 rm/25	36	8.0	2.5	43.0 - 48.0	283.0	696.0	2260.0	500 kcmil
NA2XSY 18/30kV 1X240 rm/16	36	8.0	2.5	43.0 - 48.0	182.0	696.0	2210.0	500 kcmil
NA2XSY 18/30kV 1X300 rm/25	36	8.0	2.5	46.0 - 51.0	283.0	870.0	2560.0	600 kcmil
NA2XSY 18/30kV 1X400 rm/35	36	8.0	2.5	49.0 - 54.0	394.0	1160.0	2960.0	750 kcmil
NA2XSY 18/30kV 1X500 rm/35	36	8.0	2.6	52.0 - 57.0	394.0	1450.0	3460.0	1000 kcmil

Cross-sec. in mm2	Power Ratings		Conductor Resistance +20°C/+68°F Ohm/km	Operating Capacity µF/km	Effective Resistance +90°C/+194°F Ohm/km	Inductance per Conductor mH/km
	Underground Installation	Outdoor Installation
3 x 25 rm/16	151	147	0.727	0.203	0.928	0.399
3 x 35 rm/16	181	178	0.524	0.225	0.669	0.378
3 x 50 rm/16	213	213	0.387	0.249	0.494	0.359
3 x 70 rm/16	261	265	0.268	0.283	0.343	0.338
3 x 95 rm/16	312	322	0.193	0.315	0.247	0.323
3 x 120 rm/16	355	370	0.153	0.345	0.197	0.311
3 x 150 rm/25	399	420	0.124	0.374	0.160	0.302
3 x 185 rm/25	451	481	0.0991	0.406	0.129	0.293
3 x 240 rm/25	523	566	0.0754	0.456	0.0991	0.282
3 x 300 rm/25	590	648	0.0601	0.495	0.0803	0.274

Packing & Delivery
Package: Generally, pack in rolls or wooden drums. Accept customized service for free.Rolls, Wooden Drums, Steel Drums, Reels Delivery: Both 20GP container and 40GP container are supplied.
Air transportation, Sea transportation, Express delivery.
Our Factory00:0
Chunbin Cable Group Co.,Ltd. was founded in 1989.it has five core subsidiaries,including copper processing,PVC cable pellets production and more than 50 cooperative enterprises,With more than 600 sales outlets nationwide.It is a specialized company integrating R&D manufacturing and sales.Our company mainly produces:mineral insulated cable,photovoltaic cablecharging pile cable,OPLC rail transit cable, optical fiber composite cable, medium and low voltage XLPE insulated power cable, pvc insulated power cable,aluminum alloy cable,fire resistant cable,flame retardant cable,control cable. overhead insulated cable, low-smoke halogen-free cable,rubbercable,mining cable,aluminum stranded wire and steel core aluminum stranded wire,PVC insulated wire and cord,shielded monitoring line, protection More than 50 varieties, more than 1000 specifications,such as line,agricultural land embedding, anti-aging line, coaxial cable. At the same time, it can also produce British standard American standard and German standard wire and cable, and customize special type wire and cable for customers.CertificationsOur company strictly controls the quality of products. The products have passed the inspections of the national , provincial and municipal quality supervision departments for many years, and successfully passed the Chinese state. These certifications includes compulsory product certification, coal mine safety certification, national industrial product production license and ISO9001 international quality management system certification. It has obtained the national certificate of use of flame retardant products and is qualified as a foreign trade operator.FAQ1.Are you a factory or trade company ?We are a professional cable manufacturer with 31 years experience. The factory is located in Luoyang, Henan province, China.2.Whether these products quality assured ? Most of cables are certificated. Also, we have strict QC, all products are tested before delivery. Quality is assured. 3.When I want customized products, how to do?Contacting our customers survice, we have a professional R&D team and quality inspection team that can customize products according to customer's needs. 4.Can you send a sample for us to test?If we have inventory, you can get 1-5meters sample for free, but freight cost need to be paid by your compony. If need a lot of samples , sample and freight cost have to be paid by your esteemed company. We will return the sample cost to you when we receiving your initial order. 5.If we want to purchase, how to pay ? Generally we do T/T in 30% deposit before production, 70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request. 6.When you arrange delivery after we place an order ? Normally,we will arrange delivery in 7-15 days after order , and negotiation is allowed according to your quantity. 7.After I pay, what about shipping method?Goods can be delivered by air, by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish.

---
