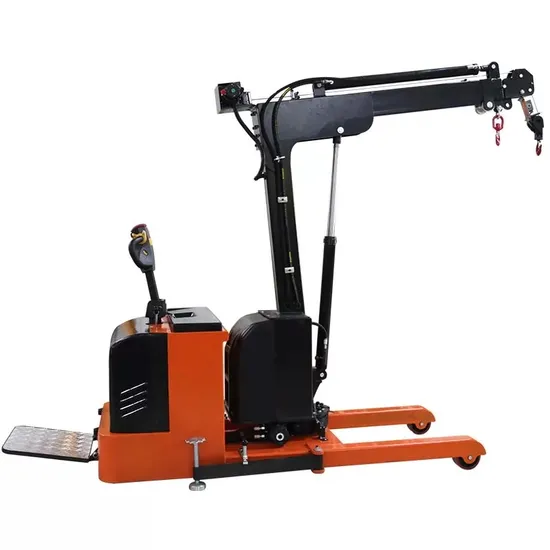

2023 New Full Electric Shop Crane-YLF01

Product Description

•Max. Capacity:1000Kg. •Jib rotation angle:±60°. •High-power reversing switch, integrated hydraulic pump; •Man machine integrated multi-function control handle, traveling steeples governor; •Shop cranes have 3 position design, wide lifting range, the second position can easy to adjust the arm distance through the cylinder; •The hook can be controlled up and down by remote control; •Manned pedal can move crane easily; •It has two outriggers to ensure the safety of product operation.

Model		YLF01
Jib length	mm(in)	1620(63.8)	2470(97.2)	2670(105.1)	2870(113)	3070(120.9)	3270(128.7)
Rated capacity	kg(lb)	1000(39.4)	650(25.6)	562.5(22.1)	475(18.7)	387.5(15.3)	300(11.8)
Jib rotation angle		±60°
Max climbing ability		5°
Turning radius	mm(in)	2150(84.6)
Overall width of leg	mm(in)	852(33.5)
Front wheel	mm(in)	∅150x50(∅5.9x1.97)
Rear wheel	mm(in)	∅250x80(∅9.8x3.15)
Brake		Electromagnetic braking
Power of driving motor		1.2 kw
Power of lifting motor		2.2 kw
Battery	(V/Ah)	24/210
Charger	(V/A)	24/30
Cable length	mm(in)	10(0.4)
Closed dimension	LxWxH mm(in)	2200×1100×2155(86.6x43.3x84.8)
Net weight	kg(lb)	1070(42.1)

---
