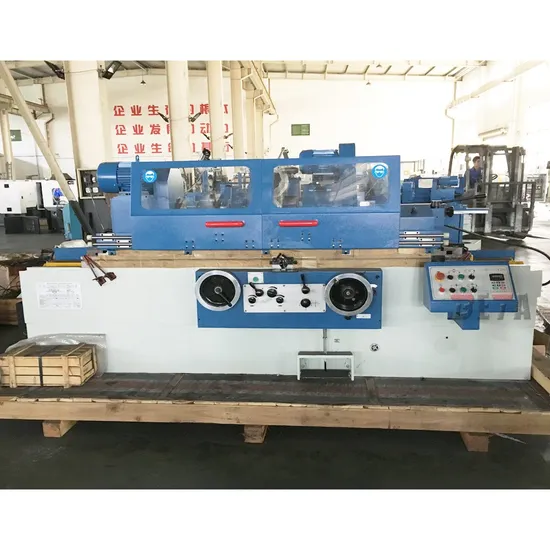

M1332 M1432 CNC External Internal Universal Cylindrical Grinding Machine Price
| Model | UNIT | M1432B |
| Distance between centers | mm | 1000, 1500, 2000, 3000 |
| Center height | mm | 180 |
| Dia.Ground (O.D) | mm | 8-320 |
| Dia.Ground (I.D) | mm | 30-100 |
| Max.length ground (O.D) | mm | 1000, 1500, 2000, 3000 |
| Max.length ground (I.D) | mm | 125 |
| Max.weight of work piece | kg | 150 |
| Workhead Swiveling angle | / | +90° |
| Workhead Center taper (MT) | MT | 4 |
| Workhead Spindle speed | r/min | 50HZ:25-220 Stepless |
| Wheelhead wheel spindle speed | r/min | 1670 |
| Wheelhead rapid travel | mm | 50 |
| Wheelhead Max.travel | mm | 246 |
| Wheelhead Swiveling angel | / | ±30° |
| Hand feed per.rev | mm | rough:2 fine:0.5 |
| Hand feed per.gra | mm | rought:0.01 fine:0.0025 |
| Wheel size (ODxWxID) | mm | 400x50x203 |
| Periphearal velocity | m/s | 35 |
| Internal grinding spindle speed | r/min | 10000/15000 |
| Internal grinding wheel size | mm | max:50x25x13, min:17x20x6 |
| Hand feed per.rev | mm | 6 |
| Max.swiveling angle of table | Clockwise | / | 3°(1000, 1500), 2°(2000, 3000) |
| Anticlockwise | / | 7°(1000), 6°(1500), 5°(2000), 3°(3000) |
| Longitudinal speed range of table | m/min | 0.1-4 |
| Tailstock Center taper (MT) | MT | 4 |
| Quil travel tailstock | mm | 30 |
| Wheelhead motor power | kw | 5.5 |
| Internal grinding | kw | 1.1 |
| Workhead motor power | kw | 1.5 |
| Packing dimension | cm | 322*200*205, 422*200*205, 540*200*205, 739*200*205 |
| Gross weight | tons | 5.3(1000), 6.1(1500), 7.9(2000), 9.9(3000) |
