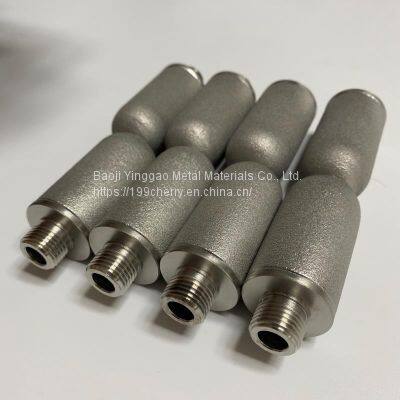

SS porous filter with smooth outer wall

Product Details

Product Description

Product Description
Filter elements with smooth outer wall types are made from stainless steel powder filter elements through special processing, with a smooth surface and poor ability for impurities to adhere. When the impurities attached to the surface of the filter element reach a certain weight, they will naturally fall off from the outer wall of the filter element, reducing the degree of clogging and thus greatly e×tending the cleaning cycle of the filter element.
Stainless steel powder sintered filter element is a metal microporous filter material processed from stainless steel irregular powder, which can be isostatically pressed, molded, or extruded. It has good permeation filtration performance and high filtration accuracy, as well as certain strength and toughness, and can be used at a high temperature of 450°C. Mainly used in petroleum, chemical, environmental protection and other basic industries as filter materials, porous electrode materials, sound-absorbing materials, shock-absorbing materials, divergent cooling materials, catalysts and catalytic reduction materials, antifreeze and buffer materials
Product parameters
Material: SS304 SS304L SS316 SS316L
Filtration accuracy: 0.22-100 microns
Porosity: 30%-50%
Applicable temperature: ≤450°
Shapes: Tubes, plates, sheets, discs, rings, rods, cones and sheets, strips are currently available
Interface form: threaded interface (G3/4, G1, M20, M30, M36, M42, etc.);
General interface of filter element (215, 220, 222, 226, flat pressure type, etc.); flange type interface and other special interfaces
Product features
1. It has high mechanical strength and can be used in high-pressure working conditions without causing deformation and damage to the filter element components and powder materials. To speed up the penetration rate during the filtration process, the pressure differential between the filter element's two sides can be increased. It is not easy to be damaged during operation, which can reduce the replacement of filter element groups,
2. It has good thermal conductivity. Because the metal powder is made of a metal or alloy that has good thermal conductivity, the powder tube also has outstanding heat dissipation performance in high-temperature applications, which lowers the thermal stress on the filter element and lengthens its useful life.
3. It has good sealing performance. Filter element filtration is performed at a specific pressure, hence the necessary filter element needs to operate well when sealed. The metal powder material is a metal or alloy with good welding performance, and has good sealing performance.
Product application
1. The concentration-matching link of filtration equipment in the pharmaceutical industry, drying three-in-one filter components, gas filtration and impurity removal, and filter elements for decarbonization and filtration of security filters, etc.
2. Decarbonization filtration, fine material filtering, and impurity elimination in the manufacturing of raw materials and liquid pharmaceuticals in the chemical industry.
3. In the water treatment industry, the ultrafiltration, RO, EDI system's front security filter filters and removes impurities, after ozone sterilization, filters and ozone aeration.
4. In the food industry, Chinese and German beverage filters, liquor beer, and mineral water are used for clarification and impurity removal filtration;
5. Exact filtering of liquid chemical products, raw materials, etc. in fine chemicals, power plants, and steel mills, filtration and recovery of ultrafine fine particles and catalysts, precision filtration after resin adsorption, etc.
6. In terms of gas purification, it mainly includes the filtration and recovery of steam, ultra-fine particles, and catalysts, the purification and filtration of catalytic gases, and the precision filtration of the generated resin after adsorption.

---
