EDM Wire Cutting Machine CNC EDM Wire Cutting Machine High Speed Wedm Machine

Product Description

Product Description

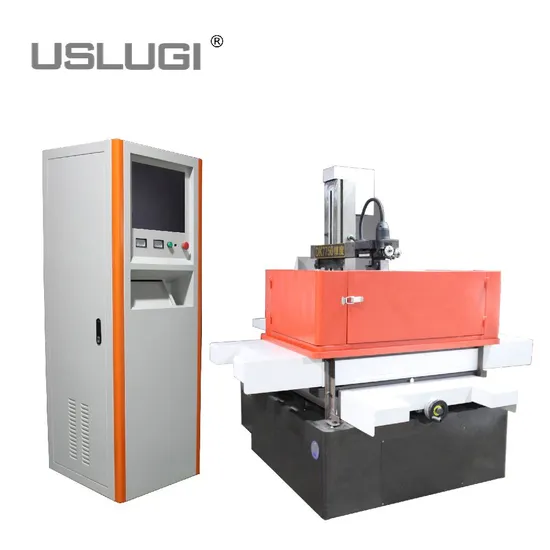

High Speed Wire Cut EDM Machine -- DK Series
Our company can customize according to customers'demands:
1.Micro WEDM machine:The minimum can be DK7716 with a stroke of 160*200mm
2.Nonstandard machine: the stroke of X axis and Y axis can be added a certain length,such as DK7725,DK7735,DK7745 and DK7755.
3.Lengthening Y axis WEDM: such as 400*630,500*800,630*1000,800*1200
4.Heightening the column to any scale: the maximum can be 1800mm
5.Various large-taper WEDM machine:from±15°,±30° to ±45°
Specification
1.Configuration:
•Resin sand machine bed
•H level linear guide
•C5 ground ball screw
•The patented waterproof stone guide wheel is a standard feature for the front guide wheel.
•Patented inclined electric cabinet is more humanized
•Patented high frequency technology has the efficiency of 10000mm²/h
•A regulating oil distributor is added to the manual oil pump system,ensuring the lubrication circuits of the wire lead-screw •and the lead-screw of X Y axes arrive simultaneously,and saving oil and time.
•As for the environmental-protection water tray,all sheet metal paint adopts baking finish technology,has strong •adhesion,corrosion resistance and scratch resistance, and not easy to fall off
•The number of screw holes on the work piece holder is increased (for example ,DK7732 is increased to 9 holes) and all the holes are penetrated to facilitate clamping.
2.Product Data of High Speed Wire Cutting:

Model	WorkTable travel(X*Y)(mm)	Worktable size(mm)	Max. cutting thickness(mm)	Table load(kg)	Dimensions(mm)	Weight(kg)
DK7720	200×250	300x400	180	100	1000×900×1300	500
DK7732	320×400	360x630	400	400	1280×1200×1500	1300
DK7740	400×500	460x690	450	550	1650x1300×1550	1800
DK7750	500×630	550x900	600	700	1760×1700×1800	2500
DK7763	630×800	650×1040	650	1200	2100x1950×1900	3800
DK7780	800×1000	890×1220	700	3000	3000×2450×2000	4500
DK77100	1000×1200	1060×1600	900	3500	3500×2800×2500	5000
DK77120	1200×1500	1230×1680	1000	4000	3800×3000×2800	6000

Samples
Product Parameters

Items	Unit	DK7763	DK7780	DK77100	DK77120
Control system		Autocut/Win	Autocut/Win	Autocut/Win	Autocut/Win
Machining accuracy	mm	±0.015	±0.015	±0.02	±0.02
Roughness (3 pass)	μm	≤2.5	≤2.5	≤2.5	≤2.5
Worktable size	mm	650×1040	890×1220	1060×1600	1230×1680
Table travel(X*Y)	mm	630×800	800×1000	1000×1200	1200×1500
Max Cutting thickness	mm	650	700	900	1000
Max Tapper	°/mm	±3°/80	±3°/80	±3°/80	±3°/80
Max cutting speed (1 pass)	mm2/h	12000	12000	12000	12000
Max cutting speed (3 pass)	mm2/h	10000	10000	10000	10000
Max current	A	7	7	7	7
Wire dia.	mm	φ0.10-φ025	φ0.10-φ025	φ0.10-φ025	φ0.10-φ025
Wire speed	m/s	4~12	4~12	4~12	4~12
Table load	Kg	1200	3000	3500	4000
Working solution		Emulsion	Emulsion	Emulsion	Emulsion
Water tank capacity	L	56	56	56	56
Power supply		3N-380V/50Hz	3N-380V/50Hz	3N-380V/50Hz	3N-380V/50Hz
Power consumption	KVA	2	2
Wire frame		Adjustable	Adjustable	Adjustable	Adjustable
Machine dimenslons	mm	2100x1950×1900	3000×2450×2000	3500×2800×2500	3800×3000×2800
Machine weight	Kg	3800	4500	5000	6000

FAQ
1.How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.You can also send us the products drawing ,we will choose the most suitable machines for you.
2.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Milling Machine ,Vertical Machining Center ,Engraving and Carving Machine,Drilling and Tapping Machine ,Drilling EDM Machine,Die Sinking Machine,Wire Cutting EDM and so on.
3.What's your warranty?
A:Free one-year warranty and lifetime service for the entire machine.
4.When is the delivery time?
A:We can deliver stocked machines within 15 business days and afterreceiving full payment.
5.What is the packing of the machine?
A:The standard packaging of the machine is wooden pallet plastic film.

Our factory
Company Profile
Uslugi Tech Co.,Ltd.is an enterprise that integrates production, manufacturing, and research and development.By combining advanced manufacturing technology with the rich debugging experience of professional engineers and strictly adhering to standardized operating procedures, we ensure that every step is taken All machine tools are qualified to leave the factory, while ensuring that every qualified machine tool has the same stability and details uniformity.It adheres to the core values of "integrity, quality, focus, and innovation", creates greater value for customers, benefits society with the spirit of' craftsmanship", shares development with employees, partners, shareholders, and society, and achieves a win-win future.
Certifications

---
