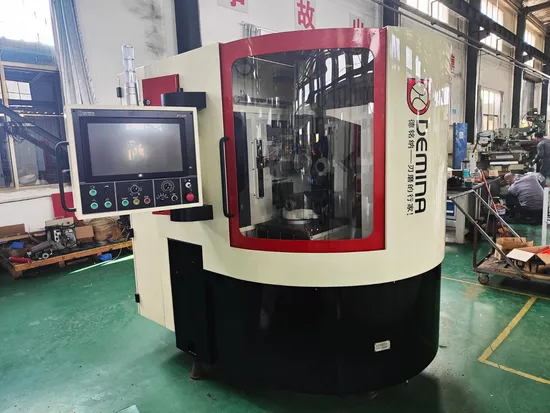

6-Axis CNC PCD&PCBN Tool Grinder

Product Description

Product Description
Compared with traditional five-axis CNC tool grinder,BT-150DS has one more axis for grinding wheel inclination.It is flexible enough to grind PCD & PCBN rotary tools,nonstandard carbide insert by means of special fixture and software packages. Probe or video measurement system can be equipped according to user requirements.So carbide tool resharpening and small tool production is also possible on this machine.
Scope of use of BT-150DS

Product Parameters

1	Diameter of Grinding wheel	150mm
2	Direct Drive Spindle with Water Cooling	5 KW
3	RPM of Grinding Spindle	0~5,000 RPM
4	Spindle speed range	0-8000 RPM
5	Changeable Clearance Angle	-5~25°
6	Max Magnification of Optical Microscope	0.7x~4.5x
7	Industrial PC and Displayer	15 inch
8	Magnification of CCD Measuring System	About 70 times
9	Coolant Tank with Filter Paper	About 70L
10	Electriacl Supply	12KW
11	Voltage Requested	380V/Three Phase/50Hz
12	Weight with Coolant Tank	2000Kg
13	Overall Dimensions	1890*1650*1980mm

Detailed Photos
Packaging & Shipping

After Sales Service

1. The warranty period: is one year.2. During the warranty period, all kinds of failures are repaired and free of charge in time, and all kinds of non-man-made damage to parts will be replaced free of charge in time.3. Outside the warranty period, the supplier provides lifelong paid maintenance services. If the parts are replaced, the supplier supplies the demand side at a cost price.

Company Profile
Demina mainly engages in mass production of CNC tool grinding machine and provides tool regrinding service. We have been in the field over 20 years. It is a national high-tech enterprise and a SRDI enterprise in Beijing.Our company's independently developed BT-150 series PCD tool grinding machine closely combines traditional tool grinding technology with software technology. On the basis of ensuring the accuracy of tool grinding, we have achieved CNC tool grinding technology, greatly improving the work efficiency of tool enterprises and effectively reducing their operating costs.
According to the different technical requirements of our customers, our BT-150 series PCD tool grinding machine have three types: manual action, manual and automatic integration, and CNC operation. Among them, the CNC tool grinder with specially developed software is in a leading position in the industry in China. In addition to providing high-quality products, we also provide customers with comprehensive and high-quality after-sales technical support.

---
