Product Description
Product Description
ER-TS-2180VO Features:
1. Single axis tilt monitoring;
2. Output 0~5V, 0~10V (optional);
3. Full range accuracy 0.005°, resolution 0.0007°.
Introduction

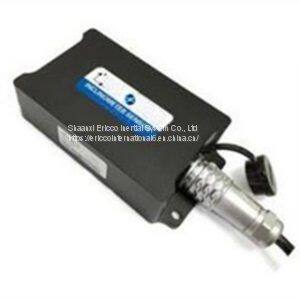

It is a standard industrial high-precision analog voltage single-axis tilt sensor. The standard voltage is 0~5V, 0.5~4.5V, 0~10V can be selected, through the RS232 output, can be long-distance transmission 2000 meters. The user only needs to collect the voltage value of the sensor to calculate the current tilt angle of the object. The built-in (MEMS) solid pendulum can be converted into the change of the inclination angle by measuring the change of the static gravity field.
Using MEMS sensor production technology, it can accurately compensate and correct temperature errors and linear errors. It has the characteristics of high precision, small size, high packaging technology and strong vibration resistance. Due to the built-in anti-radio frequency and anti-electromagnetic interference circuit, it is especially suitable for applications in harsh industrial environments such as underground non-excavation machinery.
Features
Single axis tilt monitoring
Full range accuracy 0.005°, resolution 0.0007°
Output 0~5V, 0~10V (optional)
Wide-voltage input DC 11~36V
Wide temperature working -40~+85℃
Range 0~±5/±10/±15/±30° (optional)
High vibration resistance >20000g
IP67 Protection
Can output RS232 at the same time
Volume (107*55*27mm) (customizable)
Applications
Railway gauge ruler, gauge instrument
Satellite solar antenna positioning
High altitude work vehicle
Mining machinery, oil logging equipment
Medical equipment
Hydraulic lifting platform
Inclination monitoring
Angle control of various construction machinery
Inspection of bridges and dams
>>
