Product Name
Heavy Duty CNC Lathe
Max Swing Dia. Over Bed
1250mm
Max Swing Dia. Over Carriage
930mm
Workpiece Length
1500-6000mm
Transport Package
Metal Pallet Package
Specification
6500*2200*1800mm
Production Capacity
200 Sets /Year
Packaging & Delivery
Package Size
650.00cm * 228.00cm * 260.00cm
Package Gross Weight
6000.000kg
Product Description
PRODUCTION DESCRIPTION
CK61125 series CNC lathe is an economical CNC machining lathe, which can be used for rough machining and finishing machining of mechanical parts. It is simple and reliable in structure, convenient in operation, economical and practical. The control system has comprehensive functions and can meet the needs of many industries. Especially suitable for automobile, machinery and other industries, rotary parts for efficient, high-volume, high-precision processing.

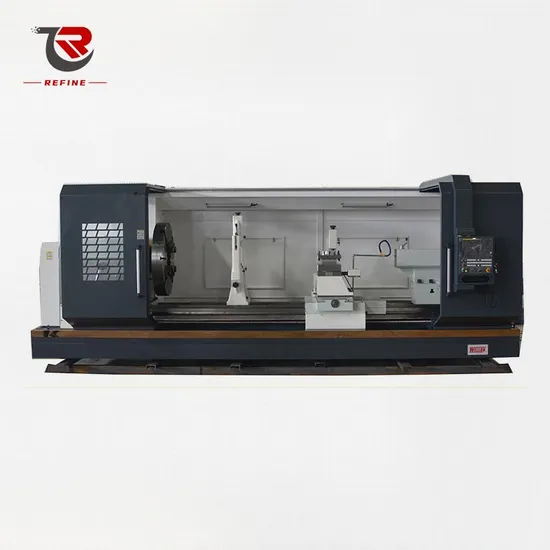

MACHINE PICTURES
PARAMETERS
| INDEX | ITEMS | UNIT | CK61125 |
Machining
Range | Max. Swing diameter over bed | mm | Φ1250 |
| Max Swing diameter over carriage | mm | Φ930 |
| Max work piece length | mm | 4000 |
| Max. Cutting Length | mm | 3850 |
| The width of the guide rail | mm | 650 |
| Chuck Diameter | mm | Φ1000 |
| Workpiece weight | T | 3 |
| Spindle | Spindle front end taper | | 1:20/15 |
| Spindle bore diameter | mm | 104 |
| Spindle Series | | 3 Gear, infinitely variable speed in gear |
| Spindle speed range | r/min | 25-100rpm;80-260 rpm;240-700 rpm |
| Main Motor Torque/Power | | 210Nm/22kW |
| Distance from Spindle Center to bed | mm | 625 |
| Distance from Spindle Center to the ground | mm | 1230 |
| Feed system | X/Z -Axis fast moving | m/min | 4/6 |
| X-Axis Travel | mm | 625 |
| Z-Axis Travel | mm | 3850 |
| Min set unit of X - axis feed | mm | 0.001 |
| Min set unit of Z - axis feed | mm | 0.001 |
| X/Z-Axis positional accuracy | mm | 0.03/0.045 |
| X/Z-Axis Re-positional accuracy | mm | 0.012/0.02 |
| X-Axis Servo motor speed | r/min | 1500 |
| X-Axis Servo motor torque/power | N.m/kW | Rated torque 15 N.m,
Maximum torque 30 N.m /2.3KW |
| Z-Axis Servo motor speed | r/min | 1500 |
| Z-Axis Servo motor torque/power | N.m/kW | Rated torque 30 N.m,
Maximum torque 44 N.m /5.0KW |
| Mian Motor | Speed | r/min | 1480 |
| Power | kW | 11 |
| Tool Rest | Electric Tool rest | | 4-Station |
| Motor Power | W | 5 |
| Tool rest size | mm | 300*300 |
| Tangent Max torque | N.M | 1250 |
| Time of change tool | s | 3.6/90° |
| Section Size | Cylindrical | mm | 32*32 |
| Inner Hole | mm | 32 |
The tailstock
device | Tailstock sleeve diameter | mm | Φ100 |
| Tailstock sleeve travel | mm | 250 |
| Tailstock sleeve taper | mm | Morse No.6 |
| Lubrication Pump | | Pressure 2.5MP Flow 6L/min |
| Lubrication Pump Motor | W | 500 / Voltage 220V |
| Lubrication mode of guide rail and lead screw | | Centralized lubrication |
| Cooling Pump | W | 125 / Voltage 380V |
| Machine Size | mm | 6500*2200*1800 |
| Machine Weight | T | 6 |
MACHINE FEATURES
The X/Z axis of the machine adopts ball screw pair, with good motion accuracy and dynamic characteristics.
The tool holder adopts HONGDA electric tool holder, and the locking force can reach 28KN.
4- jaw chuck, easy to operate, large clamping force, high precision.
When the manual tailstock is configured, the tailstock movement is driven by the bed saddle.
Fanuc Controller
