Farms Working Land Scraper Raker 2.1m Width

Product Description

Product Description

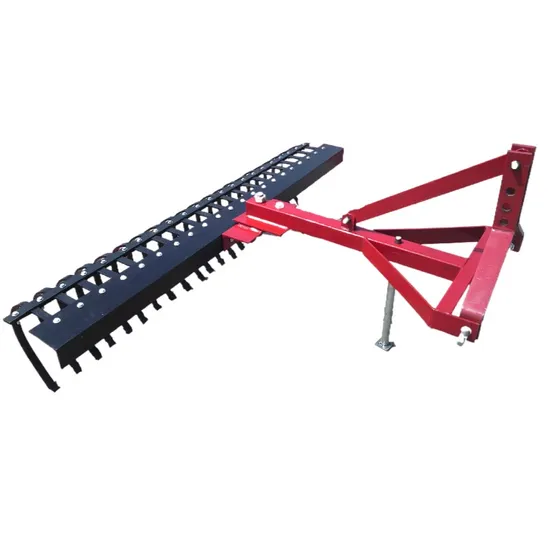

Landscraper rake is used for collecting weed and hayers from land, it works with tractors, which mounted on the rear of tractors by 3-point linkages.
The harrow tines are made of 65Mn spring steels, with good elasticity, high hardness, excellent wear resistance.

Detailed Photos

Product Parameters
Models of Landscraper Rake:

Model	Working width(mm)	Overall weight(kg)	Matched power(hp)
LR-4	1200	120	25
LR-5	1500	130	30
LR-6	1800	140	40
LR-7	2100	150	50

Workshop Show


Related Farm Machines
We can supply all kinds of tractors and farm working tools, these the items show:
FAQ
1, What tractors can you match the attachments tools?--- We can supply the tools for tractors from 25hp to max 260hp.2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?-- Normally, if only one tractor without cab, we will make plywood case with steel frame packing to pack the tractor and do LCL shipment; If the tractor with cab, we suggest to use one single container to ship it.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty for the tractor is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.7, Any free spare parts supply for the tractor and attachment tools?--- Normally, we will give extra oil and diesel fitlers for spare parts.But it depends the order quantity.

Packaging & Shipping

---
