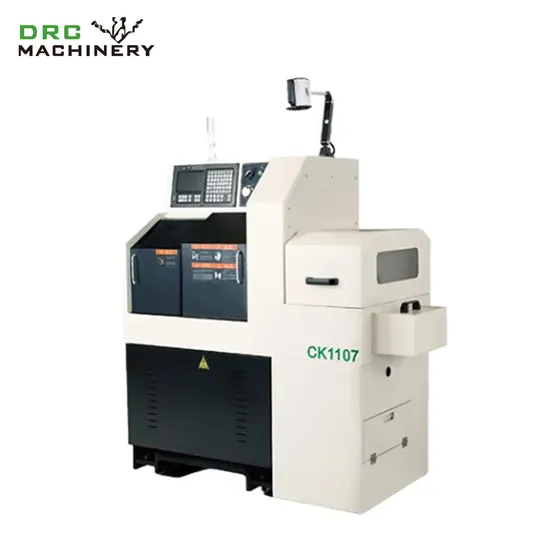

CNC Swiss Lathe Ck1107 Swiss Type CNC Lathe for Metal Cutting

Product Description

Ck1107 Multi-function Swiss Type Cnc Lathe For Metal Cutting Swiss Type 5 Axes Cnc Lathe With High Quality Swiss type cnc lathe Main Features:
1. Using the counter spindle and the back tool post, front and back processing can be performed at the same time.
2. Equipped with 3-axis lateral power head, lateral rigid tapping, front rigid tapping, back rigid tapping.
3. Equipped with no guide sleeve device, which is most suitable for high precision machining of short workpieces.
4. Adjust the chuck with the clamping force of the main shaft and the back shaft, which can easily clamp fine and precise parts Fixed guide bushes and linked guide bushes have better benefits.
5.The main shaft oil-cooled electric spindle has no dead angle cooling at high speed, and it has more uniform heat dissipation and stronger performance than ordinary air-cooled electric spindle.
6. This machine adopts absolute operation, no need to return to the original point on and off, saving time and labor and labor. Uninterrupted power supply for 24 hours, high efficiency and labor saving.
Swiss Type Cnc Lathe Application:
It is capable of turning and milling combined processing.
It is a high-precision, wide-ranging and practical processing equipment.
This type of machine tool is suitable for large-scale and large-scale "slender shaft" partswith relatively large length and diameter, and "small" and "abnormal" parts.
Variety, high-precision processing tasks, its processing range is widely applicable to various high-tech industries such as medical, aviation, aerospace, military, automobiles, motorcycles, communications, refrigeration, optics, home appliances, microelectronics, electronics, watches, mobile phones, etc. Compound processing of precision, multi-batch, complex shape shaft parts and precision small parts. Product Parameters

Power supply	Power supply rated voltage	Three-phase AC 380V
	Power supply rated frequency	50HZ
	Total input power	4kW
CNC system	BYSK	YZ150
	Small setting unit	0.001mm
	X axis pulse equivalent	0.0005mm
	Y axis pulse equivalent	0.001mm
	Z axis pulse equivalent	0.001mm
	Large programming size	±9999.999
	Cutting speed	1--4000mm/min
	X axis rapid feed rate	15000mm/min
	Y axis rapid feed rate	15000mm/min
	Z axis rapid feed rate	15000mm/min
Spindle	Large bar diameter	Φ7mm
	Spindle hole diameter	Φ8mm
	The height of the spindle center from the ground	890mm
	Spindle speed	0-5000r/min
	Spindle motor power	2kW
Journey	X axis travel	38mm (amount of diameter)
	Y axis travel	80mm
	Z axis travel	150mm
	X axis servo motor power	0.4kW
	Y axis servo motor power	0.4kW
	Z axis servo motor power	0.4kW
	Slide form	Linear Guides

---
