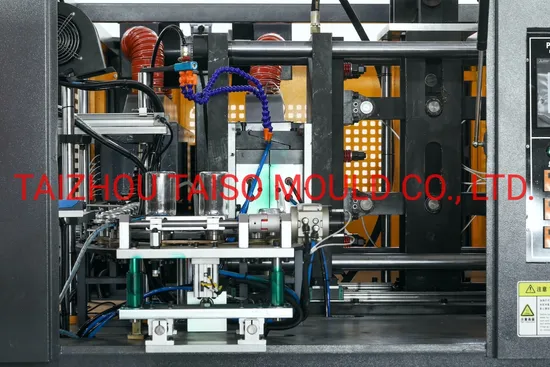

Two Cavities Large Water Bottles/Big Oil Bottles Hand Feeding Automatic Blow/Blowing Moulding/Molding Machinery/Machine

Product Description

Features
Apply 2L to 5L mineral water, carbonated drink, cooking oil, wine, medicine, cosmetics bottles etc
-Servo driving system, fast, stable and energy saving, optional servo clamping, preform loading and
stretching system
-Adopt pressurized plate to solve the mold swelling and big mold line problem
-Adpot human computer interface, PLC will automaticlly feedback fault point, easier maintain
-Adjustable lamps design makes the preform heating in the best situation
-Automatic oil adding device, can avoid the pollution risk of manual adding
Technique Parameter of blow molding machine:

ITEMS	Unit	TS-A2-5L	TS-A1-5L	TS-A1-10L
Number of cavities	cavities	2	1	1
Max. volume	L	5	5	10
Neck size	mm	40-60	40-60	45-80
Max. Bottle dia.	mm	165	165	195
Max. Bottle height	mm	350	350	420
Theoretical output	bph	1200-1500	500-600	400-500
Rated power	kw	45	30	66
Power consumption	kw	20-25	15-20	30-40
Main machine size	m	2.4*2*2.1	2.2*1.4*2.1	3.5*2.05*2.3
Preform loader size	m	2*1.3*2.5	2*1.3*2.5	2*1.3*2.5
Weight	kgs	3500	1950	4500

---
