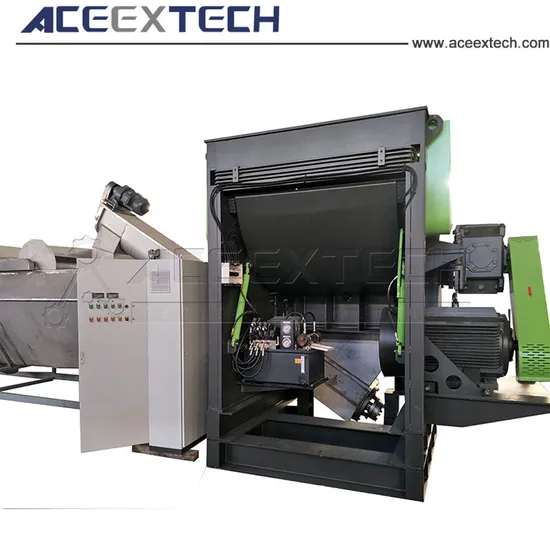

Shredder for Jumbo Bag, Woven Bag, Ton Bag

Product Description

Shredder for Jumbo Bag, Woven Bag, Ton Bag
Material of ACEEXTECH Shredder:
Basic data of ACEEXTECH shredder:
ALS Series Shredder

Model	ALS-600	ALS800
Rotor diamter	300mm	400mm
Rotor width	600mm	800mm
Feed opening	600*1000	800*1200mm
Drive motor	22KW	37KW
No. of rotor knives	22pcs, SKD-11	30pcs, SKD-11
No. of stator knives	1-2pcs, SKD-11	2-4pcs, SKD-11
Hydraulic drive	1.5KW	2.2KW
Output capacity	200-300kg/h	400-600kg/h
Screen size	50mm	50mm
Heavy duty type rack, hydraulic drive for material pushing, Special designed feeding hopper to avoid material splashing Material of blades is SKD-11, high wear resistance and strong for hard material such as PP woven bag, Repairing door was designed on the the chamber, Easily to change the blades, PLC control system.

AMS Series Shredder

Model	AMS-1000	AMS1200	AMS1500
Rotor diamter	400mm	400mm	600mm
Rotor width	1000mm	1200mm	1400mm
Feed opening	1300*1000mm	1300*1200mm	1300*1500mm
Drive motor	55KW	75KW	132KW
No. of rotor knives	38pcs, SKD-11	46pcs, SKD-11	58pcs, SKD-11
No. of stator knives	2-4pcs, SKD-11	2-4pcs, SKD-11	2-4pcs, SKD-11
Hydraulic drive	3.75KW	5.5KW	5.5KW
Output capacity	500-800kg/h	600-900kg/h	1000-1500kg/h
Screen size	50mm	50mm	50mm
Heavy duty type rack, hydraulic drive for material pushing, Special designed feeding hopper to avoid material splashing Material of blades is SKD-11, high wear resistance and strong for hard material such as PP woven bag, Repairing door was designed on the the chamber, Easily to change the blades, PLC control system.

ABS Series Shredder

Model	ABS-1200	ABS1600	ABS2000	ABS2500
Rotor diamter	560mm	560mm	560mm	560mm
Rotor width	1200mm	1600mm	2000mm	2500mm
Feed opening	1200*1850mm	1600*1850mm	2000*1850mm	2500*1850mm
Drive motor	90KW	110KW	2*75KW	2*90KW
No. of rotor knives	105pcs, D2	140pcs, D2	180pcs, D2	225pcs, D2
No. of stator knives	6pcs, D2	8pcs, D2	12pcs, D2	10pcs, D2
Hydraulic drive	5.5KW	5.5KW	7.5KW	7.5KW
Weight	8500KG	10000KG	13000KG	15000KG
Output capacity	800-1000kg/h	1000-1500kg/h	1200-1800kg/h	1500-2000kg/h
Screen size	50mm	50mm	50mm	50mm
Heavy duty type rack, hydraulic drive for material pushing, Material of blades is D2, high wear resistance and strong for hard material such as PP woven bag, Repairing door was designed on the the chamber, Easily to change the blades, PLC control system.

Specifications of ACEEXTECH Shredder:
Blade:Material of blades is D2, high wear resistance and strong for hard material such as PP woven bag
Pipeline:Neatly arranged, quick and easy maintenance
Bearing: SKF,Swedden
Rotor: Optimal design, long use time
Hydraulic:Heavy duty type rack, hydraulic drive for material pushing
Control:PLC control system.
Why choose us?
Safety
Safety cover
All welded steel construction
Humanity
Automatic PLC control
Hydraulic control for maintenance
EFFICIENCY
Blade with special design which changes three angles to use
Repairing door was designed on the the chamber, Easily to change the blades
Other advantages:
Lower investment cost for a high quality and durable machine;
Low energy consumption with high production output;
Fast machine delivery and installation:
Aceextech produces on an average of 10 sets of plastic machine per month and can deliver the machine faster than most manufacturers.
The regular delivery time of an Aceextech recycling machine is 90 working days.
Contact to ACEEXTECH:
ACEEXTECH MACHINERY CO., LTD
Tel: +86-512 58620105
Fax:+86-512 58620107
Mobile : +86-13915722488
Website: aceextech.en.made-in-china.com
Add: No.18 Yuefeng Road, Nanfeng Town, Zhangjiagang City Jiangsu, China, 215628

---
