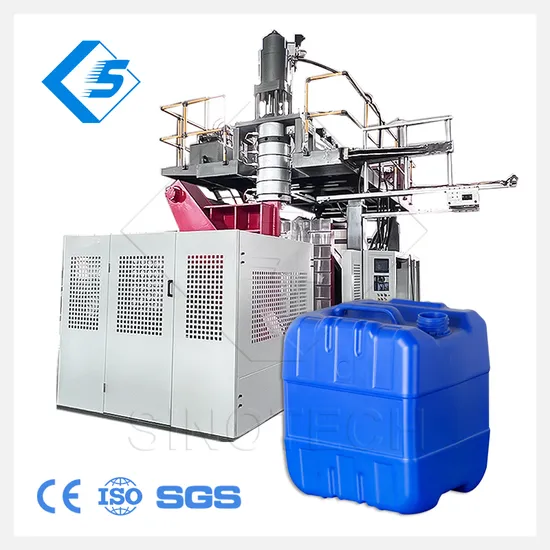

CE Approved Automatic Plastic Extrusion Blow Molding Machine with Factory Price

Product Description

Product Description
CE Approved Automatic Plastic Extrusion Blow Molding Machine with Factory Price
This machine is specialized in making the 30L to 60L water bottle.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Customize the products according to your requirement
Product Description
STD-80/90 Accumulator Extrusion Blow Molding Machine
Machine Features 1. Special design for 30L 60LPE/PP Jerrycan bottles... 2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose 10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head and Single station.
Product Parameters

Technical Specification		STD-80 Series Accumulator
		Extrusion Blow Molding Machine
Specifications		STD-80 Series
Material		PE,PP,ABS...
Max container capacity	L	30
Output (dry cycle)	pc/hr	360
Machine dimension(L*W*H)	M	4.7*2.6*4
Total weight	T	12
Clamping system
Clamping force	KN	200
Platen opening stroke	mm	350-850
Platen size (W*H)	mm	750*860
Max mould size(W*H)	mm	520*1000
Mould thickness	mm	360-420
Power
Max drive	KW	67
Total power	KW	82
Fan power for screw	KW	0.5
Air pressure	Mpa	1
Air consumption	M3/min	0.8
Average energy consumption	KW	38
Extruder system
Screw diameter	MM	80
Screw L/D ratio	L/D	24
Melting capacity	kg/hr	120
Number of heating zone	zone	4
Extruder heating power	KW	21.4
Extruder driving power	KW	30
Accumulator head
Number of heating zone	Zone	4
Power of die heating	KW	21.3
Max die-pin diameter	mm	250
Accumulator capacity	L	5

Detailed Photos


Company Profile
Packaging & Shipping
Customer Feedback
FAQ
Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

---
