High Quality Flexible Durable Stepping Motor High Accuracy Warpping Winding Machine for Electric Insulation Tape

Product Description

Specificaton
GWLT-0318 Adhesive Taping Winding Machine for Toroidal Transformer

Tape width	8-10-12-15mm(optional)	Max.winding speed	230rpm/min
Max.final coil.O.D	80-250mm	Perimeter Of magazine	920mm
Min.final coil.I.D	30mm	Controller storage capacity Programs	1000set
Max.finalcoil height	110mm	Mechanical dimensions	650*500*1200mm
Width of magazine	8-15mm(optional)	Weight	108kg

Features:
1.Tape is loaded onto the magazine and cut automatically,and the winding speed of Transformer core Taping Machine increased in order to finish the job in minimum time.
2.The magazine of automatic tape winding machine may be exchanged in minutes to accommodate different tape widths.
3.Cable taping machine is controlled by gear set to precisely set the depth of tapping.
4.Special relay gear design for quick exchanging of pitch setting gears.
5.To increase the production volume, the main spindle belt is designed to be with lightly weight to reduce heat caused by motor spinning significantly.
Advantages:
1.High accuracy: stepper motor guarantees high accuracy
2.The cut surface is flat: the hot knife can heat seal the cut surface of the color ribbon and the light and thin textile belt, and the sealing is smooth and free of burrs.
3.The blade is made of imported high-quality steel and has a long service life.

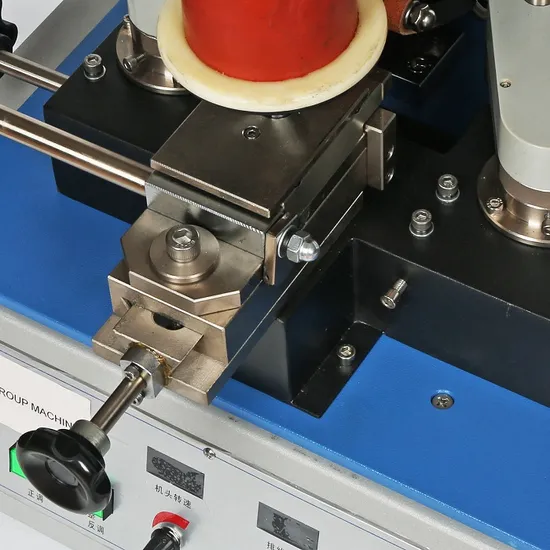

4.Automatic operation: just set the length and number of cuts you need, and the rest of the work is done automatically. Detailed Photos
WINDING MACHINE
GWL-6200 Slider type toroidal transformer coil winding machine

Equipment model	GWL-6200
Winding mode	Gear type
Finally complete the outside diameter	60-120
Minimum finished inside diameter	35
Maximum completion height	80
Suitable winding diameter range	0.2-0.7
Diameter of wire storage ring	195
Width of storage ring	9-12
Maximum speed	800 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x700
Weight	90KG

GWL-5200 Slider type high speed coil winding machine for toroidal transformer

Wire diameter	0.15-0.7	Max.winding speed	800rpm
Max.final coil.O.D	φ60/120	Magazine Diameter	195
Min.final coil.I.D	Φ30	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	80	Mechanical dimensions	500×600×700
Magazine width	3-6	Weight	90kg

GWLA-0319 Gear type middle speed copper wire toroidal coil winder

Equipment model	GWLA-0319
Winding mode	Gear type
Finally complete the outside diameter	60-200
Minimum finished inside diameter	25
Maximum completion height	80
Wire size	0.5-1.6
Diameter of magazine	250
Width of magazine	3-8
Depth of storage ring	10/12/16
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	500x600x750

GWL-0519 Gear type Current Transformer Winding Machine

Wire diameter	0.7-2.0mm	Max.winding speed	200rpm
Max.final coil.O.D	φ60-250mm	Magazine width	4-18mm (optional) standard 8mm
Min.final coil.I.D	Φ40	Supply voltage	AC 220V(50Hz)
Max.finalcoil height	90	Mechanical dimensions	650*500*700mm
Controller storage capacity Programs	50*20 set	Wight	120kg

GWL-815 Gear type high quality coil winding machine for toroidal transformer

Wire diameter	0.3-1.6mm	Max.winding speed	300rpm
Max.final coil.O.D	Φ50-200mm	Magazine width	3-10mm (optional)
Min.final coil.I.D	Φ20mm	Supply voltage	AC 220V(50Hz)
Max.final coil height	60mm	Mechanical dimensions	650*500*700mm
Controller storage capacity Programs	50*20 set	Wight	100kg

GWL-077 Middle speed toroidal transformer coil winding machine

Equipment model	GWL-077
Winding mode	Gear type
Finally complete the outside diameter	80-250
Minimum finished inside diameter	40
Maximum completion height	150
Suitable winding diameter range	0.8-2.8
Diameter of wire storage ring	1070
Width of magazine	8-20mm standard:12mm
Maximum speed	230 RPM
Operating voltage	220V/50HZ
Overall dimension	650*500*750mm
Weight	130KG

GWL-0619 Big gear high stability floor type winding machine for inductor

Equipment model	GWL-0619
Winding mode	Gear type
Max.Final outer diameter	130-450
Mini final inside diameter	70
Max Final height	220
Wire diameter	1.0-4.0
Perimeter of magazine	1200
Width of magazine	10-30(Optional)
Max winding speed	120 rpm/min

GWLJ-0519 Gear type Rectangle transformer coil winding machine

Wire size	0.7-2.0mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm (Please note: 60-300mm does not mean such a wide range directly, but refers to adjustment by adjusting some installed parts. If the maximum 300mm is selected, products smaller than 150mm cannot be processed; on the contrary, if the product is selected to be suitable for small products, it cannot be processed. Products larger than 150mm.)
Minimum the inner length/width	45mm(Length is greater than 45mm Width is greater than 45mm)
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

GWLA-0319F Gear type Rectangle transformer coil winding machine

Wire size	0.5-1.6mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm
Minimum the inner length/width	45mm
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

TAPING MACHINE
GWL-500T Toroidal taping wrapping machine with film

Suitable winding band width	10-12-15-20mm
Finally completed outer diameter	80-250mm
Minimum finished inner diameter	40mm (with 10mm storage ring installed)
Maximum finished height	130mm
Width of magazine	10-20mm (optional)
Magazine circumference	1070mm
Maximum winding speed	230 rpm
Presetable programs	50*20 groups (1000 running programs)
Overall machine weight	100kg

Application

Company Profile
Founded in 1993, Grewin has provided cost-effective, high-quality manufacturing solutions to a variety of industries. Whether it is the production of high-frequency transformers winding, low-frequency transformers winding, inductors winding and other coils winding , or other vital components, our winding machines have been relied upon by countless manufacturers around the world.
Our Team with Customers

Certifications

Packaging & Shipping

After Sales Service
PRE-SALE:
1. Strong and professional team of engineers, rich experience
2. Able to provide innovative solutions and quotes in one day
IN SALE:
1. Delivery time: 5-10 days(standard machine), 30 days(custom )
2. Free consulting service: in-depth understanding of customer needs
3. Provide professional advice: including the choice of parts type and consumable parts of the machine.
AFTER-SALE:
1.24 hours free remote service: video guide and telephone
2. Warranty:1 year after-sales service

---
