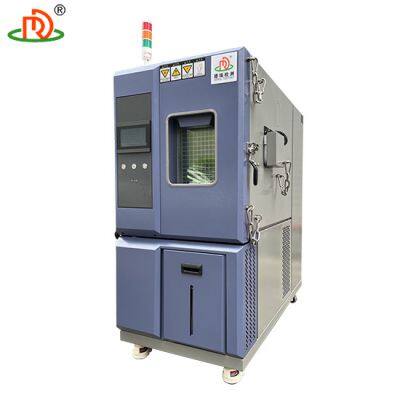

Battery Explosion-Proof Temperature Humidity Control Climatic Test Chamber
Product Details
Product Details
Product Description
Product Description Battery Explosion-Proof Test Chamber is mainly used for over-charge and over-discharge test of the battery. During the charge and discharge test, the battery is placed in an explosion-proof chamber, and the external charge and discharge test machine is connected to protect the operator and the instrument. FEATURES 1. Observation window 2. Silicone compression strip and explosion-proof chain handle, safe to operate 3. Inner material: stainless steel;outer material: cold rolled sheet and painted 4. Separate exhaust and lighting system 5. 4 casters for easy movement STANDARDS 1. UN38.3(2012) “Recommendations on the Transport of Dangerous Goods-Manual of Tests and Standards” Part III 2. IEC62133-2012 “Safety requirements for batteries and battery packs containing alkaline or non-acid electrolytes” 3. GB/T 31485-2015 “Safety requirements and test methods for power batteries for electric vehicles” 4. GB31241-2014 “Safety requirements for lithium-ion batteries and battery packs for portable electronic products” SPECIFICATION
Indicators
Parameters
Operating temperature
Room temperature 25±5℃
Inner box size
500x500x500mm (WxDxH)
Dimension
700x650x1330mm (WxDxH)
Control method
Push-button control
Smoke venting
Diameter is 100mm
Pressure relief port
Opening size 200x200mm, located at the back side of the box
Inner box material
SUS201 stainless steel plate, thickness 1.2mm; and affixed with Teflon
Outer box material
1.5 mm thick cold-rolled steel plate with baking paint treatment;
Viewing Window
250x250mm two-layer tempered glass with stainless steel explosion-proof mesh
Box door
Single door with left opening and explosion-proof chain on the side of the door;
Test Holes
1 test hole of 50mm diameter on the right side of the device
