Plasma/Carbon Arc Air Gouging CO2/MIG/Mag Gas Shielded/TIG Argon Arc/Stud/Submerged Welding CNC Flame/Plasma/Laser Cutting Machine Laser Cleaning Machine

Product Description

We supply high quality automation welding equipment, standard and custom made
according to customers' requirements.
- Welding Manipulator,
- Welding Positioner,
- Self-Aligning Welding Rotator/Turning Roll ,
- Manual Aligning Welding Rotator/Turning Roll ,

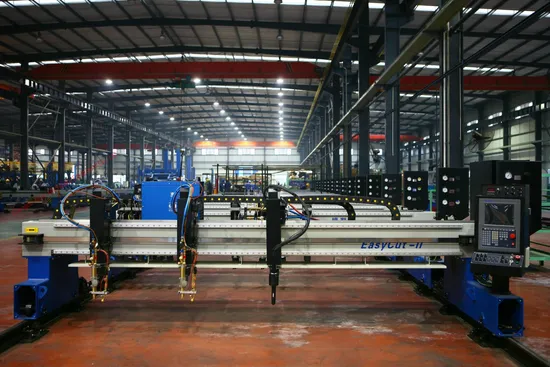

- CNC Cutting Machine (Flame Cutting / Plasma Cutting ) ,
- Gantry Type Submerged Welding Machine ,
- Laser Welding/Cutting/Cleaning Machine
...
Longitudinal/circumferential Automatic seam welding machine
Universality:
1. Can be used for TIG/MIG/MAG/PAW/SAW welding applications.
2. Can be used to weld Metal Sheets/Pipes/Cones/Boxes.
3. Can be used with Oscillator, Seam Tracker, Wire Feeder and other Function parts
Models of Longitudinal Automatic seam welding machine

Item	Unit	ZF-500	ZF-1000	ZF-1500	ZF-2000	ZF-2500	ZF-3000
Max. workpiece's length	mm	500	1000	1500	2000	2500	3000
Workpiece's diameter	mm	80-750	115-700	155-700	185-700	220-700	250-700
Workpiece's thickness	mm	0.5-3.0	0.5-6.0
Torch stroke(pneumatic)	mm	100
Torch adjustment	mm	Y:± 30mm; Z: ± 30 mm
Power input	V	AC 1 Phase 220V(±10%) 50Hz
Carriage travel speed	mm/min	100 - 1800
Max. welding current	A	500
Weight	Kg	500	1200	1500	1800	2100	2400
Package	CBM(m³)	2.97	5.17	7.00	8.84	10.68	12.51

Options:Intergrated wire feeder,seam aligning device,different backing bars,backing bars cooling device,backing bar's gas shielding device,shielding cove
Models of Longitudinal Automatic seam welding machine

Item	Unit	HTC-3C	HF-300W	HF-300WS	HF-300L	HF-300LY
Max. workpiece's length	mm	500	1200		-
Max. workpiece's weight	kg	30	50			250
Max. workpiece's diameter	mm	350	550		600
Chuck's working diameter	mm	10 - 120	10 - 200			-
Through-hole diameter	mm	30	50			-
Torch stroke(pneumatic)	mm	100				150
Tailstock stroke(pneumatic)	mm	-	150		-	-
Headstock rotating speed	RPM	1 - 10				0.6 - 6
Headstock angle	°	0°, 30°, 45°, 60°, 90°				-
Torch adjustment	mm	X: ± 30 mm Y:± 30mm Z: ± 30 mm
Max. welding current	A	500
Power input	V	AC 1 Phase 220V(±10%) 50Hz
Weight	kg	310	380	400	300	350
Package	CBM(m³)	1.45	2.39	2.39	1.08	1.37

---
