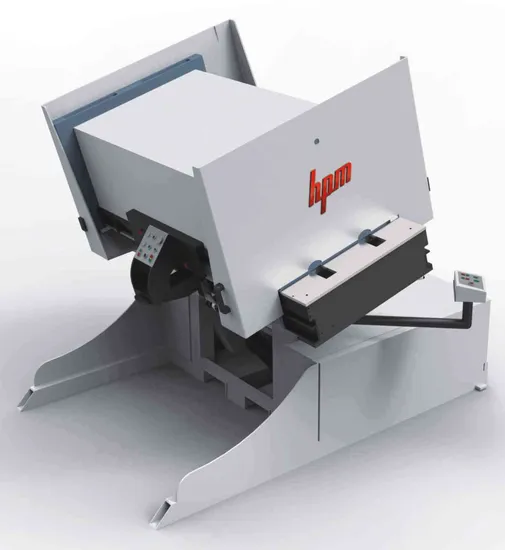

Full Automatic Multifunctional Pile Turner with Aligning/Air Blowing/Vibrating

Product Description

PAPER PILE TURNER SFZ1300/1650/1800 LA
DESIGN FEATHERS:
1.Very stable steel frame design
2.Attractive design
3.Underrun option for pallet truck
4.Closed,single part,strong vibrating table pallet
5.Maintenance-free slewing ring and cylinder bearing
6.Double air nozzles with overload slipping clutch can be controlled at operating console continuously
7.Stop-forward,reverse run of the air nozzle for removing single bow
8.Strong radial blowers with large air quantity
9.Powerful slipping device with direct drive
10.Stable collision and maintenance-free side stop with very large travel
11.Impact-free dropping of the ventilated stack through damped swivel cylinder
12.Hydraulic unlocking of the lifting frame
13.Optimal working height through relocation of pivot point
14.Highest operating comfort through two operating consoles
TECHNICAL PARAMETER

Model	SFZ1300LA	SFZ1650LA	SFZ1800LA
Max. Width of plate	1300mm	1650mm	1800mm
Max. paper size(L*W)	1200*900mm	1550*1100mm	1700*1300mm
Min. paper size(L*W)	500*400 mm	600*500mm	600*500mm
Max. paper height(including two plates)	1600mm	1600mm	1630mm
Min. paper height(including two plates)	700mm	800mm	850mm
Max. Lifting capacity	2000kg	2500kg	3000kg
Rated voltage	380/220V	380/220V	380/220V
Gross power	12KW	31KW	31KW
Net weight	3400KG	4700KG	5100KG
Machine size(L*W*H)	2920*2020*2220mm	3450*2410*2430mm	3650*2560*2630mm
Packing size(L*W*H)	3100*2200*2100mm	3460*2500*2100mm	3660*2650*2100mm

CONFIGURATION LISTING

No	Name	Brand, specification & model	Origin of brand
1	Servo driver	Inovannce	China
2	Vibration Motor	AMP/OLI-WOLONG	China
3	PLC	Inovannce	China
4	Air switch	TE	France
5	AC contactor	TE	France
6	Button	TE	France
7	Photoelectric sensor	FOTEK	China
8	Frequency Converter	Inovannce	China
9	Switch power	TE	France
10	Power switch	CANSEN	China
11	Miniature Relay	TE	France
12	Hydraulic Block	WAISN	China
13	Drive motor	BOSCH/LICHUAN	Germany/ China
14	connector	Weidmuller	Germany
15	Touch screen	MCGS	China

FUNCTIONS
1.Automatic turning and rotation functions.
2.The touch screen has integrated different operation functions, and can be used for setting parameters directly, conveniently and quickly.
3.Auto and manual modes can be switched based on user's operation requirements.
4.The touch screen is integrated with functions such as turning, rotation, clamping, opening and flap alignment.
5.Servo backup plate is used to sense paper pile automatically and finish alignment of paper pile quickly.

Functions	Function Characteristics
Blowing	Stepless adjustment of air blowing + Settings of blowing times
Vibration	Stepless adjustment of vibration
Air Nozzle	Stepless adjustment of speed
Position selection	180° rotary feeding + Home position feeding
