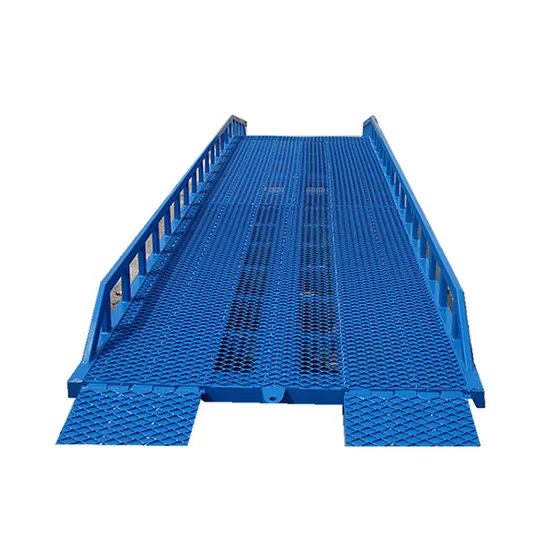

Hydraulic Container Loading Dock Ramp for Forklift Mobile Yard Ramp

US$3,000.00
1-9 Pieces
US$2,800.00
10+ Pieces

Basic Info.

Model NO.
DR6-6
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Screw Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, RoHS, ISO 9001
Transport Package
Wooden Box
Specification
customized
Trademark
DAAILIFT
Origin
China

Product Description

Model No. EDR-6 EDR-8 EDR-10 EDR-12
Load Capacity (t) 6 8 10 12
Platform Size (mm) 11000*2000
Overall Size(mm) 11000*2000*1400
Lifting Height(mm) 1000~1800
Lip Width (mm) 400
Tail Board Length (mm) 800
Operating Manually
Platform Materials 3mm checked steel plate +7mm steel screen
Lip Materials 14mm Q235B plate
Tyre 500-8 solid tyre
Cylinder Pin 45# Ø50 rod steel*4
Lifting Hydraulic Cylinder HGS series Ø80/45*2
Lip Hydraulic Cylinder HGS series Ø40/25
Hydraulic Oil Pipe Double wire mesh high pressure tubing 2-10-43MPa
Hydraulic Oil ML series antiwear hydraulic oil 6L
Net Weight(kg) 2450
