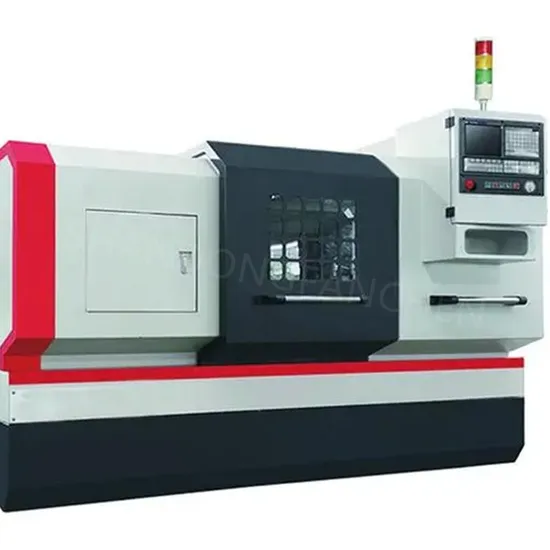

Ck6136 CNC Lathe Horizontal High Precision Configuration Optional

US$13,000.00-15,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
6136
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Turning Diameter of Bed Surface
360
Maximum Working Length
1000
Tool Rest Form
Electric Four-Station
Machining Accuracy
High
Inner Diameter of Spindle Through Hole
Φ52
Feed Per Turn
0.005-100
Spindle Drive Form
Three Speed Endless Shift
Spindle Speed
500-1800
Tailstock Sleeve Stroke
130
Tool Dimension
20*20
Transport Package
Wooden
Specification
2600× 1500× 1650
Trademark
FANCHEN
Origin
China
Production Capacity
10

Packaging & Delivery

Package Size
1200.00cm * 1500.00cm * 1800.00cm
Package Gross Weight
2200.000kg

Product Description


argument unit Model number6136
Maximum turning diameter on the bed mm 360
Maximum turning diameter on a skateboard mm 190
Maximum working length mm 1000
Bed width mm 400
X-axis travel mm 200
Z-axis travel 1000
Spindle speed range r/min 500-1800(2)(High and low 2) stepless frequency conversion speed regulation
Spindle end size C6
Taper of spindle inner hole Morse 6, metric 52
Spindle through hole diameter mm 52
Number of tools 4/6
Shank size 20*20
Tool change time sec ≤2
X-axis fast feed mm/min 4000 Servo 4000
Z-axis fast feed mm/min 6000 Servo 6000
Feed per turn mm/r 0.005-100
Minimum setting unit mm 0.001
Repeated positioning accuracy mm 0.01
Surface roughness Ra1.6
Taper of tailstock sleeve MT5
Tail seat sleeve diameter mm 65
Tailstock sleeve stroke mm 130
Main motor power KW 4
X,ZN.m N.m 4,6

1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) FAQ
