China Woodworking Machinery Semi Automatic Wood Pallet Nailing Machine

Product Description

China Woodworking Machinery Semi Automatic Wood Pallet Nailing Machine Product Description

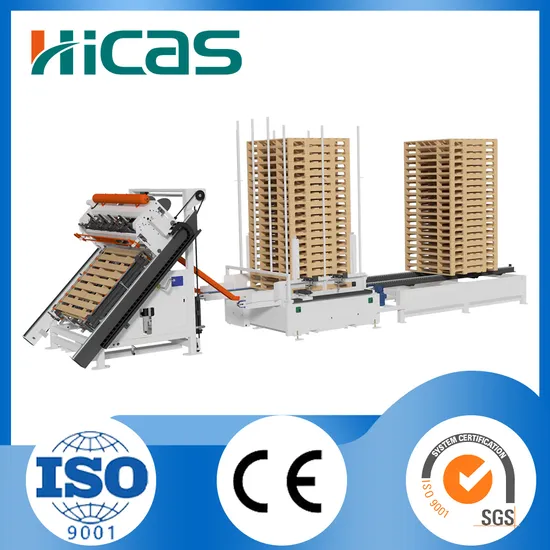

For stringer pallet, double wing pallet (face and bottom wing should be same length) nailing, 2-4pc stringer is adjustable, one operator. Contains nailing head + stacking table + out-feeding conveyor.
SF9025 lightspots High productivity and easy operation: 300-500pcs pallets per hour by 1 operator Less change over time, Workable for different pallet types, 2-4 runners stringer pallet, Wing stringer pallet, Accurate wood board position and nailing position makes standard pallet. Angled platform for labor saving. Enough safety production. Two kinds emergency stopper on the platforms, safety switch equipped door. Yaskawa servo motor, electrics, IFM and Autonics sensors, Siemens PLC and Touch screen etc. Lower power consumption, 3kw Strong and durability, Reinforced frame Product Parameters

Model	SF9025
Pallet type	Stringer pallets
Operator	1 operator
Pallet length	750-1300mm
Pallet width	750-1300mm
Pallet height	90-170mm
Stringer width	35-80mm
Min. Distance between any 2 face deck	10-30mm
Nailing gun distance	Min. 135mm
Nail distribution	Straight line
Stringer quantity	2-4pc
Productivity	300-500pc/8h for 3 layers pallet 600-800pc/8h for 2 layers pallet
Nailing gun (Brand Everwin or other brand)	4pc N70 or N80 (Pls choose one) 1-3pcs nails adjustable, photoelectricity testing for the nailing position. Nailing gun distance manual adjust Nailing gun height electric adjust
Coil nails	1000-3000 nails/coil N70: Nail diameter 2.3-2.8mm, length 45-70mm N80: Nail diameter 2.5-3.3mm, length 50-80mm
Stacking table	Pneumatic table, max. Loading weight 500kg.
Out-feeding table	4m length without power
Power	Nailing head 1.3kw Staking 0.75kw*2 Out-feeding table 0kw Total 3kw
Voltage	380v 50hz 3phase
Air pressure	0.6-0.85 MPa Max. Distance 5m between air tank (Prepare by buyer min. 1m3 volume) and machine
Air consumption	0.6m3/min
Electric components	brand
Motors	Chinese brand
PLC and touch screen	Siemens
Pneumatic components	Taiwan AirTac brand
Sensor	Germany IFM sensors, Korea Autonics detection switches
Dynamical	Japan Yaskawa Servo-motor and Servo Driver
Machine working size	10*3.2*3.7m
Packing size	2700*2300*2580mm main machine 3360*2260*1800mm stacking table 3400*2130*700mm out-feeding table 1150*430*1750mm electric cabinet
Machine weight	4000kg

Detailed Photos
Final Product
Comparison with Peers
Related Products

SF9026	Stringer Wood Pallet Making Machine	Read More>>
SF9025	Stringer Wood Pallet Making Machine	Read More>>
SF9010	Stringer Wood Pallet Nailing Machine	Read More>>
SF9022	Wood Pallet Legs Nailing Machine	Read More>>
SF1000	Wooden Pallet Production Line	Read More>>
SF2000	Wood Pallet Mat Nailing Machine	Read More>>
SF9020	Pallet Leg Nailer	Read More>>
SF9030	Manual pallet assembly line	Read More>>

Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2011 with two manufacturing centers in Qingdao, covering about 20,000+ square meter.
1.Founded in 2011.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer visits & feedbacks & exhibitions
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our After Sale Service & Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 200 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like wood pallet machine, edge banding machine, sanding machine, drilling machine, saw machine, roller coater, spray painting machine, nailless plywood box machine, pallet collar machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German

---
