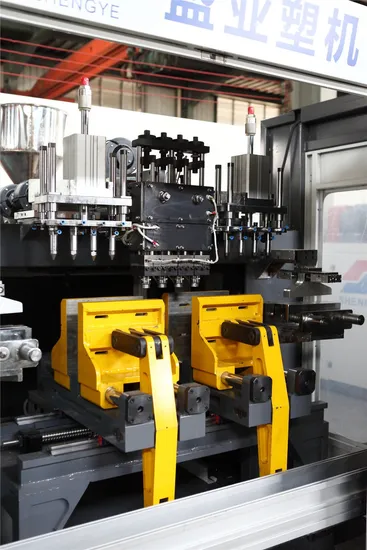

Automatic Blow Molding Machine

Product Description

Yuhuan Shengjiang Plastic Machinery Factory is located in Qinggang economic development zone of Yuhuan, Taizhou city, Zhejiang province. It is an integrated company which includes research & development, production and sales for more than 30years. The Factory is professional on producing blow moulding machine, extrusion machine, and tube drawing machine, especially in the equipments of one-time blow moulding. All the equipments are widely used in the plastic packaging industries for beverage, washing, furniture, toys, automobile, medical, medicine and farm chemical. And the raw materials involved include (PVC, PETG,PE, PP, PS, PC, ABS,)etc.Based on the advanced equipments for production inspection, commissioning and installation.

Code	SYJII-SF-50-4
Max Product Volume	100ml
Output	840pc/h*4
Machine Size	3100mm*1800mm*2200mm
Weight	3500KGS
Voltage&Frequency	Clients' Specified
screw Diameter	50mm
L/D Ratio	1:(22-30)
Die Head Qty	4pcs
Max Center Distance of Die Head	70
Extrusion Motor Power	7.5KW
Total Power	27KW
Average Energy Consumption	5kw
Extruder heating power	9kw
Number of hating zone	3
Oil pump drive power	/
Max plasticizing capacity	30-50kg/h
Platen Size	300mm*200mm*150mm
Max mould size	300mm*200mm*150mm
Clamping force	15KN
Opening Stroke	120mm-150mm
Moving Stroke	350mm
Cooling water pressure	0.3MPa
Water consumption	20L/min
Air pressure	0.6Mpa
Air consumption	0.4centiare/min

---
