Product Description
Product Description

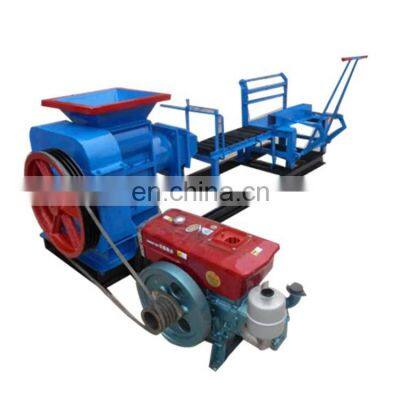

Clay brick making machine
1.Brief introduction
1>This type of machine is is suitable to make solid clay brick ,red clay brick ,red soil standard bricks, red mud brick etc, Different molds can bring out different brick.
2>The material is rich and easy to find, such as Clay, shale, coal slack, fly ash etc It is very convenient to set up a factory and begin to make bricks.
3>This machine has advantages of high production efficiency, compact structure, reliable performance, easy maintenance and steadily working without foundation bolt.
2.Feature of clay brick machine
1>Small clay brick making machine main body is made from cast iron,main shaft and bearings one-time processing,good stability and long life service.
2>Harden surface gear of Good service clay brick machine was adopted in reducer, clutch are a component with own patent,without any shaking during working, even the extruder can working normal without foundation bolts.
3>The steel material of shafts and gears in Good service clay brick machine are adopt high quality carbon steel and alloy steel, the key parts are quenched and tempered treated so as to extend fly ash bricks making machine life.
3.Parameter of clay brick machine
Brick specification
| Quantity of mould
| Time cycle
| Capacity for 8 hours
|
240*115*53
| 24
| 35s
| 12000-15000pcs
|
390*190*190
| 4
| 35s
| 1800-2200pcs
|
240*115*190
| 9
| 35s
| 5000-5500pcs
|
Whole power
| 3.7/4.1kw
| Weight
| 800kg
|
Size of board
| 880/500/30
| dimension
| 1120*1400*1700mm
|
>>
