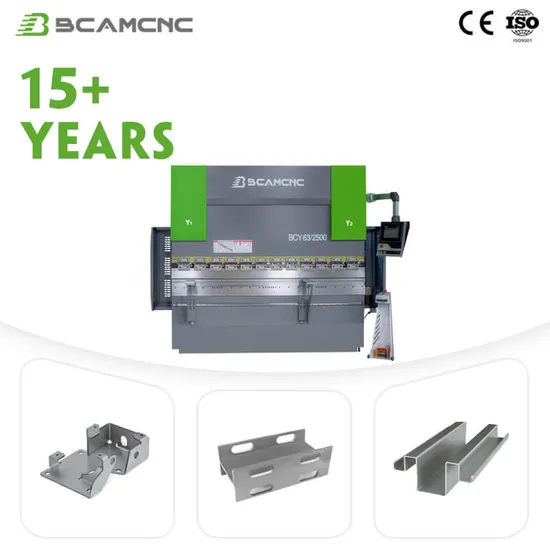

High Efficiency 4 Axis Da53t CNC Press Brake Sheet Metal Flat Iron Bending Machine

Product Description

Product Description
ADVANTAGES
1. Overall steel plate welding structure, strong rigidity
2. Multiple systems available, CT-12 / DA66T / DA53T / DA58T
3. Top-moving bending design, stable operation, easy operation
4. Pressure-maintaining and time-delay function at the bottom dead center to ensure work progress
5. Slider positioning accuracy 0.02mm, repeat positioning accuracy 0.016. Rear material adopt the average silk pole and precise ball two kind silk poles
SPECIFICATION

Model	Nominal Pressure (KN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight(mm)	Main Motor (kw)	Dimensions (L × W × H)(mm)
63/2500	630	2500	2000	250	110	350	5.5	2960×1600×2180
100/2500	1000	2500	2000	350	150	400	7.5	2980×1650×2330
100/3200	1000	3200	2600	350	150	400	7.5	3740×1650×2355
100/4000	1000	4000	3200	350	150	400	7.5	4550×1650×2450
100/5000	1000	5000	4000	350	150	400	7.5	5100×1500×2650
125/2500	1250	2500	2000	350	150	410	7.5	3980×1650×2370
125/3200	1250	3200	2600	350	150	410	7.5	3750×1650×2450
125/4000	1250	4000	3200	350	150	410	7.5	4550×1650×2470
125/6000	1250	6000	4500	350	150	410	7.5	6100×1500×2895
160/2500	1600	2500	2000	350	150	425	11	2980×1715×2410
160/3200	1600	3200	2550	350	150	425	11	3750×1715×2450
160/4000	1600	4000	3200	350	190	450	11	4550×1715×2730
160/5000	1600	5000	4000	350	190	450	11	5100×1570×2900
160/6000	1600	6000	4500	350	190	450	11	6100×1570×3010
200/3200	2000	3200	2600	350	240	460	11	3750×1815×2715

Machine Details
MACHINE DETAILSServo Motor
Torsional shaft servo: Double servomotor
Electro-hydraulic servo: Double servomotorGerman Rexroth Hydraulic System
Better linearity of flow control curve,
Closed-loop control is more accurate.HIGH STABILITY BED
To optimize the design of the sectional welding lathe bed.Lathe bed in the middle of reinforcing bar, improves the lathe bed stability.Numerical Contro System
Multiple systems available,
CT-12 / DA66T / DA53T / DA58T...
Provide you with a variety of options.Machine Tool Main Structure
Perfect design and manufacturing technology can effectively ensure the manufacturing and use accuracy of machine tools.
Support Rack
Each machine is equipped with 2 brackets, which have a simple structure but powerful functions and can be adjusted to various positions to adapt to the mold.
Samples Display
SAMPLES DISPLAY
Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQFAQ
Q: I don't know which one is suitable for me ?
A: Just tell me this information and our professional sales colleagues will recommend the right machine for you
1. What type of metal do you want to cut? (e.g., Sheet, tube, or both)2. What kinds of metal materials are you interested in? (e.g., Carbon steel, Stainless steel, Aluminium)3. What is the maximum cutting thickness and size? (e.g., Thickness: ___, Size: ___)
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:How to install and run the machine?
A: Our technicians have installed the machine before shipment. For the installation of some small parts, we will send detailed training videos and user manuals with the device. 95% of customers can learn by themselves.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.

---
