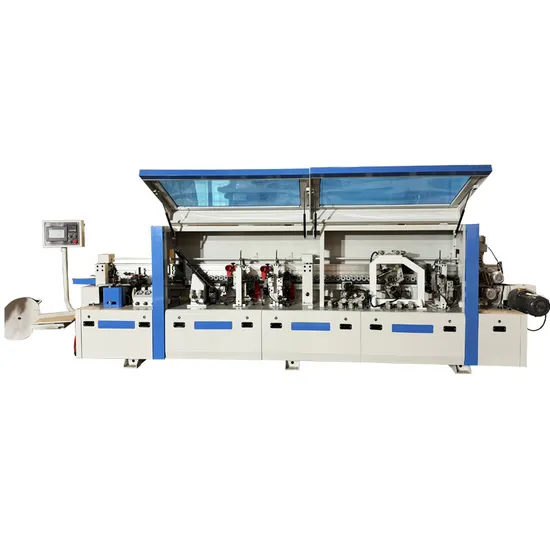

Woodworking Corner Rounding Edge Banding Machine Automatic PVC Tape Edge Bander for Wood Wardrobe Cabinet

US$6,900.00
1-2 Pieces
US$6,500.00
3+ Pieces

Basic Info.

Model NO.
LS5100
Type
Linear Edge Banding Machine
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
13m/min
Certification
CE
Panel Thinkness
8-50mm
Min.length panel
120mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Underneath
Customized
Customized
After-sales Service
Online
Transport Package
Wooden Case
Specification
5300*1100*1850mm
Trademark
leishe
Origin
China
HS Code
8465940000
Production Capacity
80sets/Month

Packaging & Delivery

Package Size
510.00cm * 120.00cm * 190.00cm
Package Gross Weight
1200.000kg

Product Description

woodworking Corner rounding edge banding machine automatic PVC tape edge bander for wood wardrobe cabinet
Product Description
The fuselage is made of high-strength steel plate, with exclusive welding process to ensure the fuselage stable without deformation, and pursue continuous improvement! 2. The guide rail of conveyor belt is made of investment casting, which is wear-resistant and smooth without deformation
3. The transmission motor adopts Taiwan joint venture brand.
4. All high-speed motors adopt famous and reliable brands, which are prosperous, efficient and stable
5. The guide rail is made of Taiwan brand, stable and durable
6. Air system, bailing brand
7. Electrical system, Chint or Delixi: air switch, contactor, Japan Omron travel switch,
8.Taiwan delta controller and delta touch
9The crossbeam hanging plate is made of aluminum
Machine details
Function:Pre-heating ,gluing,end cutting ,rough trimming ,fine trimming , Corner rounding ,scraping ,buffing

Product Parameters
Edge tape width 12-55mm
Edge tape thickness 0.4-3mm
Workpieces thickness 10-50mm
Min workpiece length 120mm
Min work piece width 80mm
Feeding speed 11-17m/min
Total power 10.8kw
Air pressuer 0.6MPa-0.8Mpa
Gluing pot heating power 1.5kw
Board preheating power 0.15kw
Gluing box transmission power 0.375Kw
Conveyor motor power 2.2Kw
End cutting motor power 0.5Kw*2 12000rom/min
Rough trimming motor power 0.7Kw *2
Fine trimming motor power 0.7Kw*2 18000rpm/min
Buffing motor power 0.18Kw*2
Corner rounding motor power 0.55KW*2 pcs
Net weight 1300Kg
Machine dimension 5300*900*1700mm

Our Advantages
Delta control panel.Touch screen,Easy operation ,clear guide
Corner rounding ,make cabinet corner smooth ,.improvce cabinet qality valve
big glue tank underneath
End cutting pvc tape

Application
This machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge. It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices; It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multifunctional, straight edge banding machine, which is very popular in woodworking furniture factory of all ages
