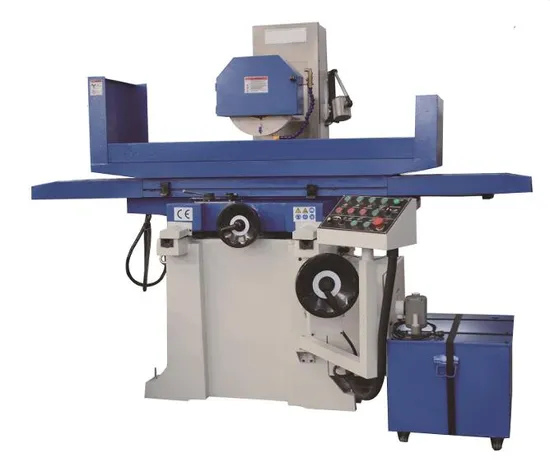

High Precision Semi-Auto Hydraulic Surface Grinder Sg4080ah/Sg4080ahr

Product Description

High Precision Hydraulic surface grinder SG4080AH/SG4080AHR
The machine is reasonable in structure, good rigidity, beautiful appearance,convenient operation.Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
The main mechanical valve is a special valve grinder, is divided into two parts,the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
Technical Parameters:

Semi-Auto
Vertical	Rapid movement and manual
Cross	Auto intermittent
Longitudinal	Hydraulic

Model No.		SG4080AH/AHR
Item No.
Technical Parameters
Table size(LxW)		806x406 mm
Maximum longitudinal travel		830 mm
Cross tranal		420 mm
Distance from table surface to spindle center		480 mm
Magnetic chuck size		800x400 mm
Speed of table longitudinal movement		7~16 m/min
Table transverse movement	Auto feed	0.1~8 mm
	Rapid speed	990 m/min
	Feed of handwheel	0.02 mm/div
Wheelhead vertical	Auto feed	--
	Rapid speed	990 m/min
	Feed of handwheel	0.01 mm/div
Grinding wheel	Speed	50HZ 1440 rpm 60HZ 1750 rpm
	Size(0DxWxID)	Ø 300x30x Ø75 mm
Spindle motor		4 kw
Hydraulic motor		2.2 KW
Cooling motor		0.09 kw
Elevating motor		0.25(AHR) kw
Cross feed motor		0.04 kw
Max. loading capacity of table(include magnetic chuck)		200 kg
Total rated power		7 kw
Height of machine		1840 mm
Gross weight		2000 kg
Packing size(LxWxH)		2500x2000x2220 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
