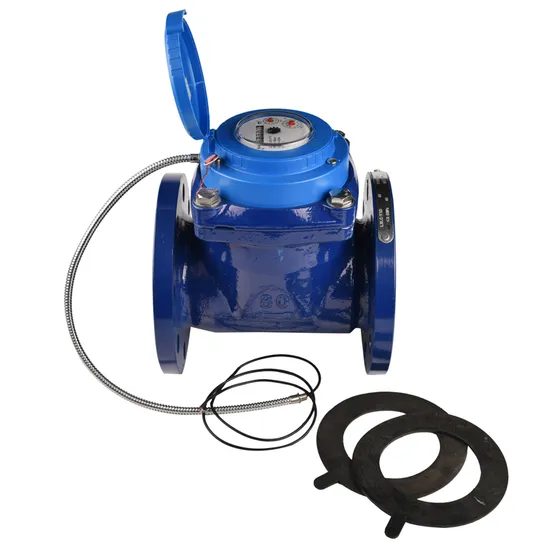

Woltman High Pressure Water Testing Meter Iron

Product Description

Product Description
Application:
--Measuring the volume of cold(hot) water passing through the pipeline.

Feature:
--Removable element structure, easy installation and maintenance, long term clear reading, inter-exchangeable spare parts, magnetic drive, small pressure loss, long working life, etc.
--Data Output Options: 10 L/Pulse, 100 L/Pulse, or 1000 L/Pulse
--Measuring accuracy is up to ISO4064 Class B , R50.

Working condition:
Water temperature: 0.1°C~40°C for cold water meter .
0.1°C~90°C for hot water meter.
Water pressure : ≤1.0Mpa
Compliance with standard: ISO4064(GB/T778.1-1996 JB/T8802-1998) ISO4064(GB/T778.1-2007)
Maximum permissible error:
(1) in the lower zone from Qmin(Q1) inclusive up to but excluding Qt(Q2) is ±5%.
(2) in the upper zone from Qt(Q2) inclusive up to and including Qs(Q4) is ±2%;(Hot water meter ±3%)

Main Technical Data:
According ISO4064(GB/T778.1-1996) standard

Type	Size mm	Class	Qs Overload Flow	Qp Permanent Flow	Qt Transitional Flow	Qmin Minimum Flow	Minimum Reading	Maximum Reading
			m3/h		L/h		m3
LXLC-50E	50	B	30	15	3000	450	0.01	999,999
LXLC-65E	65	B	50	25	5000	750	0.01	999,999
LXLC-80E	80	B	80	40	8000	1200	0.01	999,999
LXLC-100E	100	B	120	60	12000	1800	0.01	999,999
LXLC-125E	125	B	200	100	20000	3000	0.01	999,999
LXLC-150E	150	B	300	150	30000	4500	0.1	999,999
LXLC-200E	200	B	500	250	50000	7500	0.1	999,999
LXLC-250E	250	B	800	400	80000	12000	0.1	999,999
LXLC-300E	300	B	1200	600	120000	18000	0.1	9,999,999

According ISO4064(GB/T778.1-2007) standard

		Q3/Q1	Q4	Q3	Q2	Q1	Minimum	Maximum
Type	Size (mm)		Overload Flow	Permanent Flow	Transitional	Minimum	Reading	Reading
					Flow	Flow
			m3/h				m3
LXLC-50E	50	50	31.25	25	0.8	0.5	0.01	999,999
LXLC-65E	65	50	50	40	1.28	0.8	0.01	999,999
LXLC-80E	80	50	78.75	63	2.016	1.26	0.01	999,999
LXLC-100E	100	50	125	100	3.2	2	0.01	999,999
LXLC-125E	125	50	200	160	5.12	3.2	0.01	999,999
LXLC-150E	150	50	312.5	250	8	5	0.1	999,999
LXLC-200E	200	50	500	400	12.8	8	0.1	999,999
LXLC-250E	250	50	787.5	630	2.16	12.6	0.1	999,999
LXLC-300E	300	50	1250	1000	32	20	0.1	9,999,999

Dimensions and Weight
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

6. Which price terms could accepted?
A: FOB,CIF all acceptable.

---
