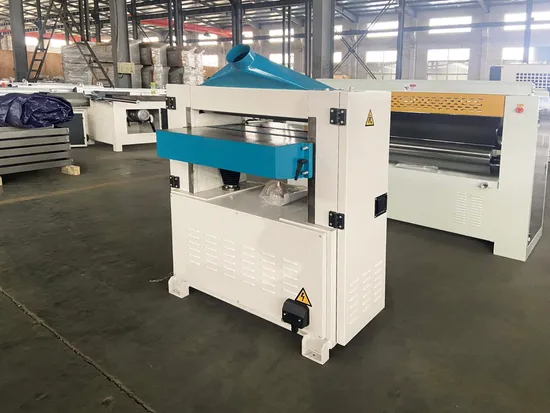

Flat CE Approved Four Side Moulder Wood Thickness Planer Machine in China MB106h

Product Description

Product descriptions from the supplier
Wood planers machine thickness planer woodworking machine prices thicknesser woodworking

Customization

We Value the needs of every customer ,and each project tailors the most cost-effective solution . According to your requirements of the wood products ,we can provide customized models with different solutions , which perfectly solve most of the woodworking customized requirements.
Application
ZHONGDING Woodworking Planer Thicknesser ,its mainly used for processing wooden products,sets of furniture,variety of wood materials,laminated wood,wood strips etc.
Suitable for all kinds of wood, high precision, suitable for furniture factories and large quantities of wood, almost no wearing parts
Product Details
Sturdy chain drive
The lifting is more stable,ensuring the accuracy of wood planning.
Suitable for continuous duty with few wearing parts.The column is made of cast iron, which is not easy to deform.
Electric lift/height digital display Optional
The workbench can be raised and lowered by electric control, and the height of the workbench can be accurately displayed.
Spiral/Helical cutter optional
Independently developed spiral cutter shaft with special shape. The efficiency of sawdust discharge is increased by 50%.
Thickened workbech
Thickened cast iron worktable, gantry milled, will not deform.Thickness ranks first in the industry
Product Specifications

Model	MB104H	MB106H
Max.planing width	410 mm	630 mm
Max.planing thickness	200 mm	200 mm
Min.Planing thickness	8mm	8mm
Max. planing amount	6 mm	6 mm
Min.Planing length	200 mm	200 mm
Max.Planing depth	8 mm	8 mm
Diameter of spindle	110mm	110mm
Diameter of Feeding/discharging roller	75mm	75mm
Spindle speed	6800 r/min	6800 r/min
Feeding speed	6-10 m/min	6-10 m/min
Motor power	4 Kw	7.5 Kw
Overall dimensions	900*940*1300mm	900*1150*1400mm
Net.weight	450 kg	550 kg

Exhibition

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia. We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.

Certifications
