Easy Operation Plastic Bottle Making Machine 4 Cavity Automatic Blow Molding Machine with 3-Year Warranty for PP PE Pet

Product Description

Products Description

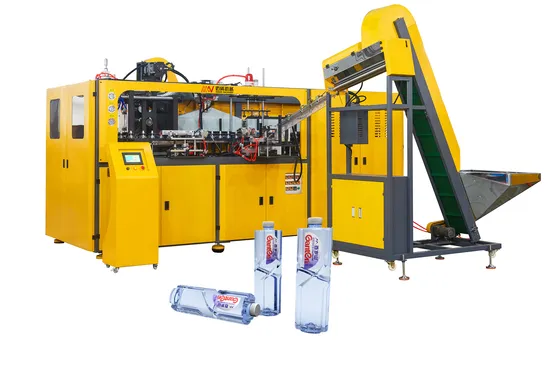

Automatic Bottle Blow Making Machine Our state-of-the-art, fully automatic high-speed blow molding machine is engineered to deliver exceptional efficiency and rapid production capabilities. It skillfully transforms preforms into bottles ranging from 20ml to 2 liters. With its meticulously crafted design, the machine ensures a smooth and consistent blowing process. Experience unparalleled precision with its uniform heating and advanced layered preform heating system, coupled with automatic fault detection and alarm features for seamless control and unwavering production stability.

Features * Our Blowing Machine is designed to produce a diverse array of bottle sizes, utilizing a cutting-edge design that guarantees vibration-free operation for superior results.
* The hydraulic mold system enhances the machine's stability, offering an intricate design that ensures impeccable clamping and robust performance.
* Equipped with an advanced air control system, the machine ensures consistent and even airflow throughout the entire operation, enhancing overall efficiency.
* A specialized cooling device meticulously attaches to the bottleneck to provide precise cooling post-molding, optimizing shape accuracy and convenience.
* Our efficient servo motors facilitate the smooth and precise stretching of preforms, delivering exact and rapid stretching strokes for optimal output.

Product Paramenters

Model		Unit	MW-F4-650	MW-F4-2000
Clamping System	Number of cabity	cavities	4	4
	Clamping unit	KG	40000	48000
	Mold stroke	mm	90	125
	Stretching stroke	mm	260	330
	Bottom stroke	mm	50	50
	Cavity pitch	mm	76.2	114.3
	Number of holder	PCS	95	82
Container	Max.container volume	ml	650	2000
	Max.container height	mm	260	330
	Max.container diameter	mm	68	105
	Max.prefrom height	mm	100	140
	Max.neck diameter	mm	38	38
Theoretical		B/H	4500	4000
Electrical System	Heating oven qty	PCS	4×4	5×5
	Number of lamp	PCS	4×7	5×9
	Heating power	KW	42	72
	Installed power	KW	45	80
	Voltage	Voltage	380V/50HZ	380V/50HZ
Air System	Operating pressure	mpa	0.7-0.9	0.7-0.9
	Blowing pressure	mpa	2.5-3.0	2.5-3.0
	High pressure air consumption	L/min	3.6/30	4.0/30
	Power	KW	45	48
Chiller System	Temperature		9-13	9-13
	Pressure	mpa	0.4	0.4
	Power	HP	5	5
Machine	Machine dimension	M	3.9×1.8×2.2	4.8×2.2×2.2
	Machine weight	KG	3500	4500

Packing and Shipping
Packaging: Our robust packaging solution involves stable wooden casings that protect against impacts and damage. A secure plastic film wrap shields the machine from moisture and corrosion. Fumigation-free packaging ensures hassle-free customs clearance. For larger machines, they are expertly secured within containers, eliminating the need for additional packaging.
Shipping: For LCL shipments, we collaborate with a dependable logistics team to ensure quick and secure delivery to the port. For FCL, we personally obtain containers and employ adept workers to load them with care. Our long-term partnerships with professional forwarders guarantee smooth processing of your shipments. We prioritize seamless cooperation with your preferred forwarders, ensuring a convenient experience for you.
Customization Service

We are dedicated to tailoring the perfect process plan for your unique product. Our complete set of mold designs guarantees a flawless match between the bottle cap (injection mold) and bottle body (blow mold). Utilizing high-precision machining centers, we craft molds with unmatched precision, delivering outstanding cooling effects. Enjoy our complimentary proofing service and marvel at our exquisite production technology, all underpinned by rigorous quality standards.
Company Profile
Maiwei is a pioneer in blow molding technology, continuously refining our expertise to enhance our product equipment. Our commitment to stability, energy efficiency, and durability sets us apart. Our diverse product lineup includes bottles for dairy products, wine, oil, laundry detergent, engine oil, sprayers, and hollow toys, alongside other hollow plastic products. We go beyond mere equipment sales, offering solutions to your packaging blow molding challenges. Our versatile machines accommodate varying air source system requirements, delivering remarkable flexibility, low energy consumption, and high efficiency.
Factory Showcase
Certifications
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service?
A.We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.

---
