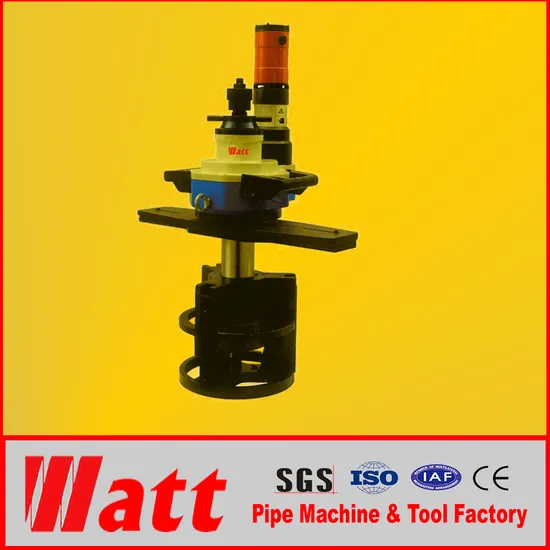

S-Inner Mounted Pipe Beveling Machine

Product Description

Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring
II-PIPE BEVELING MACHINE
OVERVIEW
S-INNER MOUNTED PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.

FEATURES
1,Cold cutting, without influence the material of the pipe
2,ID mounted, adopt T structure
3,Varity of beveling shape: U, Single-V, double-V,J beveling
4,It can also be used for repairing inner wall and deep hole processing.
5,Working range:12.5-330mm
6,Driven motor: Pneumatic and Electric
7,Customized machine is acceptable

CAPABILTY
1,Pipe end beveling
2,Inside beveling
3,Pipe facing

BEVELING SHAPE
SPECIFICATION:

Model		Working range(mm)	Wall thickness(mm)	Rated power (kw)	Rotating Speed(rpm)
Electric	Pneumatic
S6	QS6	Ф60-170	≤15	1.43	30
S8	QS8	Ф80-240	≤15	1.43	16
S12	QS12	Ф150-330	≤ 15	1.43	10
S24	QS24	Ф300-600	≤ 15	1.43	8
S32	QS32	Ф600-820	≤ 15	2.0	7

Technical Parameters:
Pneumatic: Pneumatic motor drive, air pressure 0.8 ~ 1.0Mpa, air consumption 1500 ~ 3500L / min;
electric: Overtone motor drive, power 110V or 220V optional, power: 1.7-2.2KW, frequency: 50 ~ 60Hz;
TOOLING

other beveling shape, angle and pipe material, please declare before order
Integrated tool
can be reused by grinding
Material:M42 and M35
Standard supply
Insert tool
Insert same, different angle holder
HolderMaterial: HSS ;
Insert material: Cermet or Carbide
Optional

---
