US$9,000.00-12,000.00
|
1 set
(MOQ)
|
Basic Info.
Certification
CE, ISO 9001:2000, ISO 9001:2008
Application
Paper, Plastic, Leather, Fabric
Safety Device
Infrared Radiation/Anti-Collision/Emergency Stop
Transport Package
Wooden Box
Specification
1600*2500mm
Production Capacity
100 Sets / Month

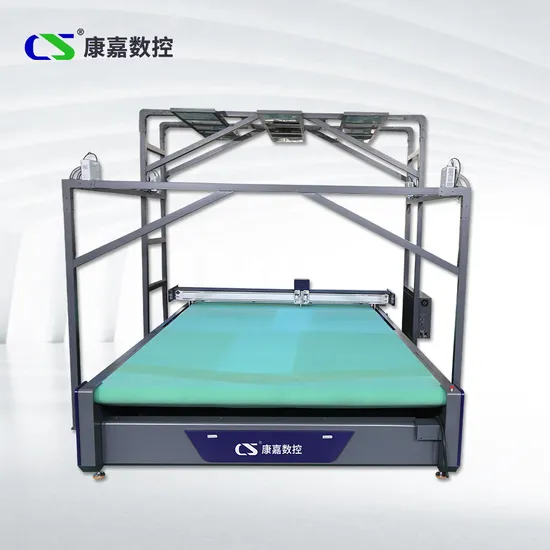

Product Description
| Model | KJCT-1625 (can be customized) |
| Fan power | 9 kw |
| Voltage | 110V/220V/380V±10%,50HZ 60HZ |
| Working characteristic | Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously |
| Cutting speed | max. 1400mm /s |
| Cutting thickness | 0.1-10mm |
| Effective cutting area | 2500mm * 1800mm |
| Cutting accuracy | ±0.1mm |
| Overall dimension | 3.42m * 2.48m *1.4m |
| Cutting materials | Rubber ,Nature leather ,pu ,fabric |
| Cutting tool | Oscillating knife cutting head |
| Location mode | Infrared laser |
| Material fixed mode | Vac-sorb |
| Transmission interface | Network transmission |
| Compatible software | Kangjia intelligent intergrated software |
| Supported formats | PLT, DXF, JDP |
| Control system | PC |
| Driving mode | Belt drive |
| Servo motor & drive | Panasonic |
| Guide rail | Brand :Yintai |
| Body structure | Body welding |
| Suction casing | Aluminum case; The platform is made of 5mm solid aviation aluminum, and the built-in support structure is made of 3mm square steel pipe, which ensures that the platform will not be deformed for a long time. |
| Certification | CE/SGS,ISO9001/ISO14001/ISO18001 |
| Safety device | Mechanical anti-collision device + infrared ray |
Factory information
Applicable industry
Certification
Exhibition
Packing and delievery
FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?
Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.
Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.
Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
>>
